1505A 010500
| Manufacturer | |
| Description | Coaxial Cables 20AWG 1C SHIELD 500ft SPOOL BLACK CABLE, COAXIAL, RG-59/U, 20AWG, 75 OHM, 500FT, BLK COAXIAL CABLE, RG-59/U, 20AWG SOLID, 75OHM IMP, DIGITAL VIDEO CABLE BLACK Coax - RG-59/U Type 20 AWG PE/GIFHDPE SH FR PVC Black |
| Category |
Business
| Product Category | Coaxial Cables | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | UL NEC/cUL CEC, EU CE |
| Tariff No | 85444920 | ||
Electrical
| Impedance | 75 Ohms | Voltage Rating | 300 V (RMS) |
| Connector Impedance | 59/U | ||
Mechanical
| Length | 500 ft | Weight | 16 lbs |
| Shielding | Shielded | Cable Type | :RG59 |
| Wire Gauge | 20 | Jacket Color | :Black |
| Shield Material | Tinned Copper | Length - Overall | :500ft |
| Conductor Material | Copper | Diameter - Outside | 0.233 in |
| Material - Insulation | Foam High Density Polyethylene | Number of Cable Pairs | Solid |
| Wire Gauge or Range - AWG | :20AWG | Jacket (Insulation) Material | Polyvinyl Chloride - PVC |
| Diameter - Outside, Non-Expanded | 0.233 " | ||
Product Info
| Application Specifics | Indoor, Outdoor, Aerial, Analog, Digital, Video | Number of Positions/Contacts | 1 |
Environmental
| Maximum Temperature Limit | + 75 C | ||
Documents & Media
Similar Parts
5221221-7
te connectivity / amp
Conn BNC RCP 0Hz to 2GHz 75Ohm Crimp ST Panel Mount Gold BNC RF Connectors CONN BNC JACK STR 75 OHM CRIMP RF Connectors / Coaxial Connectors JACK BLKHD 75 OHM BNC RF Connectors Product Highlights:ConnectorConnector Type = BNCJackTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC JACK, STR, 75 OHM, CRIMP JACK,BHD,75 OHM,BNC
1505ABHDL
Belden Wire & Cable
RF Connectors RG59 BNCHD 1PC LOCK COMPRESN CONECTR RED RF Connectors / Coaxial Connectors RG59 BNCHD 1PC LOCK COMPRESN CONECTR RED RF/COAX, HD BNC PLUG, STR, CRIMP, 75 OHM, RED RG59BNC HD CONN 1-PC LOCKING POL. NICKEL RED 75 OHM ROHS

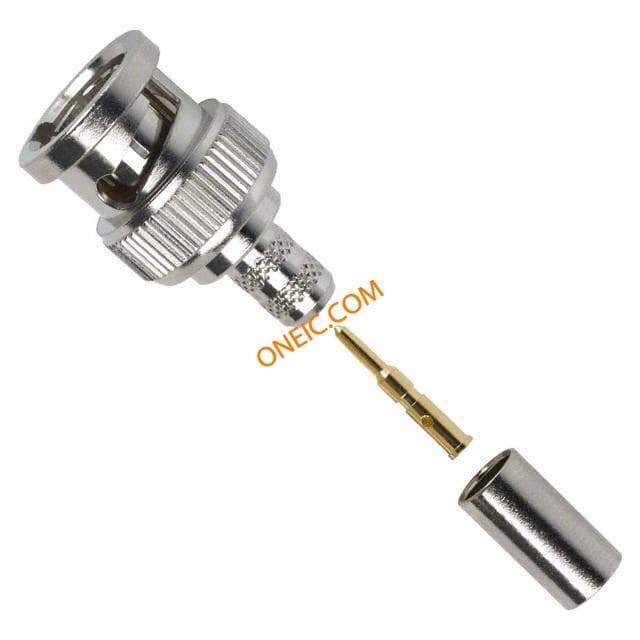

112507
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg59;62 20awg cc;75 ohm RF Connectors / Coaxial Connectors BNC CRIMP PLUG RG 59/U-75 OHM RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg59, 62 20awg cc, 75 ohm

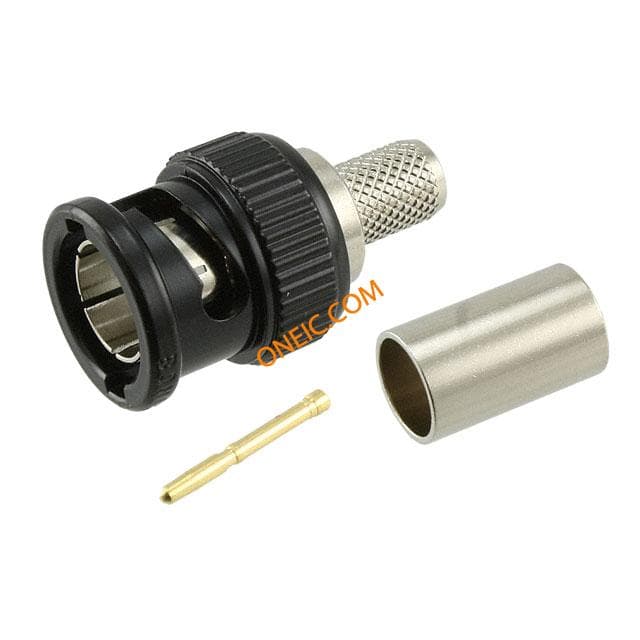

HBC1505A
