TAJB106K016RNJ
| Manufacturer | |
| Description | Cap Tant Solid 10uF 16V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 2.8 Ohm 125°C T/R Tantalum Capacitors - Solid SMD 16volts 10uF 10% TC 10uF 16V 10% Case B CAP TANT 10UF 16V 10% 1210 Cap Tant Solid 10uF 16V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 2.8 Ohm 125C T/R CAPACITOR TANT, 10UF, 16V, 10%, 1411 CAP, TANT, 10UF, 16V, CASE B, REEL CAPACITOR TANT, 10UF, 16V, 3528-21 10% Capacitor;TantalumSMT;10uF16V10%;CutTape Capacitor;Tantalum;Cap10uF;Tol10%;Vol-Rtg16VDC;SMT;Tape&Reel Capacitor: tantalum; SMD; 10uF; 16V; Case: B; ±10%; -55÷125°C Capacitor 10 uF 16 VDC PU=2000 ST, TAJB106K016RNJ, AVX |
| Category |
Business
| MOQ | 2000 | Product | Tantalum Solid Standard Grade - Other Various |
| Unit Pack | 2000 | Part # Aliases | TAJB106K016R |
| Product Category | Tantalum Capacitors - Solid SMD | Standard Package | Tape & Reel, Cut Tape |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Standards | 7in.TapeandReel | Tariff No | 85322400 |
| Automotive | NO | Rad Hardened | No |
Electrical
| ESR | 100kHz | Voltage | 16 Vdc |
| Tolerance | 10 % | Capacitance | 10 uF |
| Range deg/s | :AVX - TAJ Series | Voltage Rating | 16 V |
| Voltage - Supply | 16V | Current - Leakage | 1.6 uA |
| DC Cold Resistance | 1.6 uA | Capacitance - Input | :1210 [3225 Metric] |
| Capacitance @ Vr, F | tantalum | Dielectric Constant | 6% |
| Voltage - Supply (Min) | 16V | Capacitance @ Frequency | 10µF |
| Dissipation Factor (DF) | 6 | Power Dissipation (Max) | 0.06 |
| ESR (Equivalent Series Resistance) | 2.8 Ohm | Voltage - Protection Level (VP) (2416) | 20VDC |
Mechanical
| Seal | Not Required | Depth | 2.8 mm |
| Width | 2.8mm | Height | 1.9 mm |
| Length | 3.5mm | Weight | 0.000006 |
| Diameter | Not Required mm | Packaging | Reel |
| Insulation | Not Required | Termination | SMT |
| Construction | Flat | Height (Max) | Not Required mm |
| Lead Spacing | Not Required mm | Mounting Type | :SMD |
| Reel Capacity | :2000 | Terminal Type | :Surface Mount (SMD, SMT) |
| Mounting Style | Surface Mount | Number of Pins | :2 |
| Package / Case | 3528-21,B | Length - Actual | Not Required mm |
| Length - Overall | 3.5 mm | Material - Blade | Tantalum |
| Package Quantity | 2000 | Size / Dimension | 2.8 mm W x 3.5 mm L |
| Tape Width - Max | :8mm | Termination Style | SMD/SMT |
| Dielectric Material | TA2O5 | Shell Size - Insert | 1411(3528mm) |
| Mounting Hole Diameter | 1210 | Wire Gauge or Range - AWG | Not Required |
Product Info
| Spg | 2000 | Style | CHIP |
| Series | TAJ | Polarity | Polar |
| Matchcode | TC10U16VB | Failure Rate | Not Required |
| Manufacturer | B Case | Number of Units | 5 |
| Standard Leadtime | 12 weeks | Base Product Number | 3528 |
| Manufacturer Size Code | :B | ||
Environmental
| Temperature - Test | -55°C | Operating Temperature | 125 °C |
| Operating Temperature - Junction | 125°C | ||
Documents & Media
Similar Parts

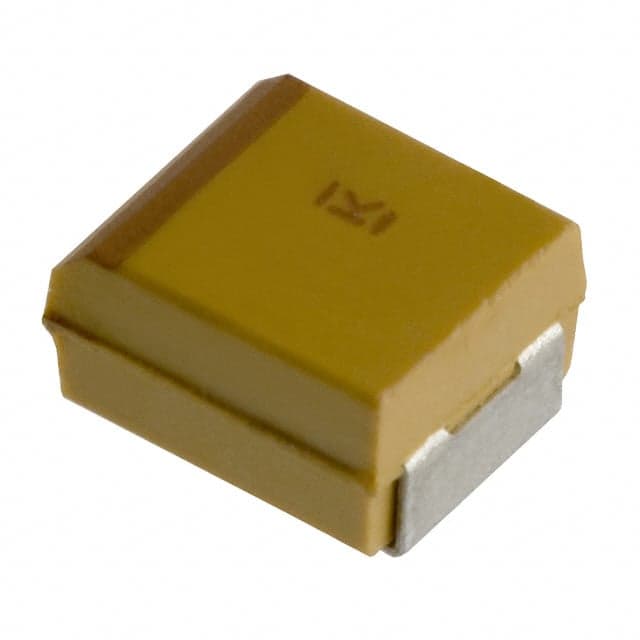

T491B106K020AT
