TAJA226K010RNJ
| Manufacturer | |
| Description | Cap Tant Solid 22uF 10V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 3 Ohm 125°C T/R Tantalum Capacitors - Solid SMD 10volts 22uF 10% TC 22uF 10V 10% Case A CAP TANT 22UF 10V 10% 1206 AVX ±10% 22μF 10V dc SMD Tantalum Electrolytic Capacitor, 3216-18 ESR 3Ω 125°C Cap Tant Solid 22uF 10V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 3 Ohm 125C T/R CAPACITOR TANT, 22UF, 10V, 10%, 1206 CAPACITOR TANT, 22UF, 10V, 1206 10% CAP, TANT, 22UF, 10V, CASE A, REEL Capacitor;Tantalum;Cap22uF;Tol10%;Vol-Rtg10VDC;SMT;3216;CutTape Capacitor;Tantalum;Cap22uF;Tol10%;SMT;Vol-Rtg10V;Code3216;TR Capacitor: tantalum; SMD; 22uF; 10V; Case: A; ±10%; -55÷125°C Capacitor 22 uF 10 VDC PU=2000 ST, TAJA226K010RNJ, AVX AVX TAJ 系列 22μF ±10% 钽电容器, 10 V 直流, 3216-18 封装, 3Ω ESR, +125°C |
| Category |
Business
| MOQ | 2000 | Product | Tantalum Solid Standard Grade - Other Various |
| Unit Pack | 2000 | Part # Aliases | TAJA226K010R |
| Product Category | Tantalum Capacitors - Solid SMD | Standard Package | Tape & Reel, Cut Tape |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85322400 |
| Automotive | NO | Rad Hardened | No |
Electrical
| ESR | 100kHz | Voltage | 10 Vdc |
| Tolerance | 10 % | Capacitance | 22 uF |
| Range deg/s | :AVX - TAJ Series | Voltage Rating | 10 V |
| Voltage - Supply | 10V | Current - Leakage | 2.2 uA |
| DC Cold Resistance | 2.2 uA | Capacitance - Input | :1206 [3216 Metric] |
| Capacitance @ Vr, F | tantalum | Dielectric Constant | 8% |
| Voltage - Supply (Min) | 10V | Capacitance @ Frequency | 22µF |
| Dissipation Factor (DF) | 8 | Power Dissipation (Max) | 0.08 |
| ESR (Equivalent Series Resistance) | 3 Ohm | Voltage - Protection Level (VP) (2416) | 13VDC |
Mechanical
| Seal | Not Required | Depth | 1.6 mm |
| Width | 1.6mm | Height | 1.6 mm |
| Length | 3.2mm | Weight | 0.00031 |
| Diameter | Not Required mm | Packaging | Reel |
| Insulation | Not Required | Termination | SMT |
| Construction | Flat | Height (Max) | Not Required mm |
| Lead Spacing | Not Required mm | Mounting Type | Surface Mount |
| Reel Capacity | :2000 | Terminal Type | :Surface Mount (SMD, SMT) |
| Mounting Style | Surface Mount | Number of Pins | :2 |
| Package / Case | 3216-18,A | Length - Actual | Not Required mm |
| Length - Overall | 3.2 mm | Material - Blade | Tantalum |
| Package Quantity | 2000 | Size / Dimension | 1.6 mm W x 3.2 mm L |
| Tape Width - Max | :8mm | Termination Style | SMD/SMT |
| Dielectric Material | TA2O5 | Shell Size - Insert | 1206(3216mm) |
| Mounting Hole Diameter | 1206 | Wire Gauge or Range - AWG | Not Required |
Product Info
| Spg | 2000 | Style | CHIP |
| Series | TAJ | Polarity | Polar |
| Matchcode | TC22U10VA | Failure Rate | Not Required |
| Manufacturer | A Case | Number of Units | 1 |
| Standard Leadtime | 10 weeks | Base Product Number | 3216 |
| Manufacturer Size Code | :A | ||
Environmental
| Temperature - Test | -55°C | Operating Temperature | 125 °C |
| Power Dissipation @ Temperature Rise | 8 | ||
Documents & Media
Similar Parts
TAJA226K010RNJ
avx
Cap Tant Solid 22uF 10V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 3 Ohm 125°C T/R Tantalum Capacitors - Solid SMD 10volts 22uF 10% TC 22uF 10V 10% Case A CAP TANT 22UF 10V 10% 1206 AVX ±10% 22μF 10V dc SMD Tantalum Electrolytic Capacitor, 3216-18 ESR 3Ω 125°C Cap Tant Solid 22uF 10V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 3 Ohm 125C T/R CAPACITOR TANT, 22UF, 10V, 10%, 1206 CAPACITOR TANT, 22UF, 10V, 1206 10% CAP, TANT, 22UF, 10V, CASE A, REEL Capacitor;Tantalum;Cap22uF;Tol10%;Vol-Rtg10VDC;SMT;3216;CutTape Capacitor;Tantalum;Cap22uF;Tol10%;SMT;Vol-Rtg10V;Code3216;TR Capacitor: tantalum; SMD; 22uF; 10V; Case: A; ±10%; -55÷125°C Capacitor 22 uF 10 VDC PU=2000 ST, TAJA226K010RNJ, AVX AVX TAJ 系列 22μF ±10% 钽电容器, 10 V 直流, 3216-18 封装, 3Ω ESR, +125°C

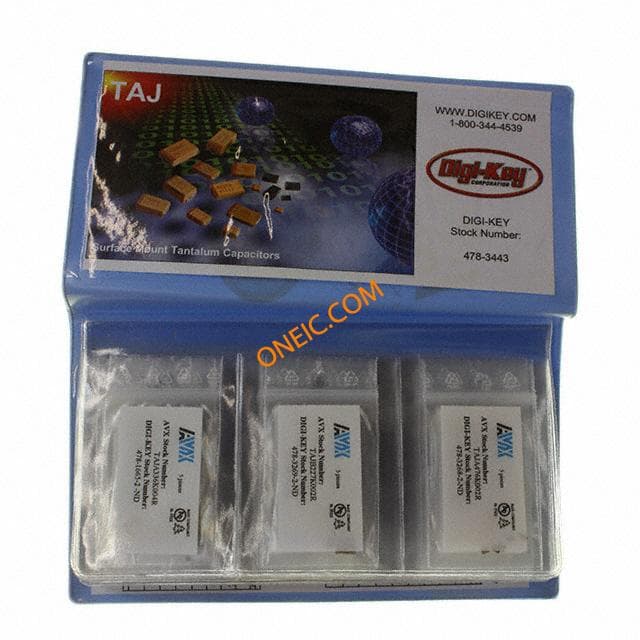

TANTTAJ001D
