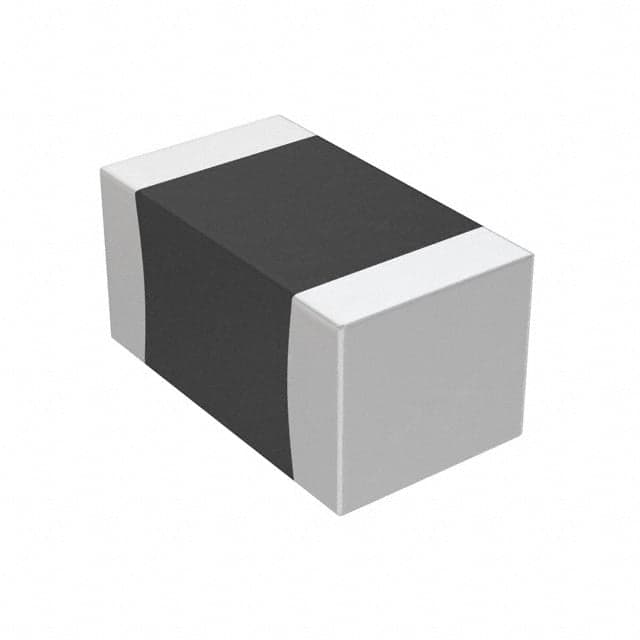

点击放大查看
06035A100JAT2A
| Manufacturer | |
| Description | Cap Ceramic 10pF 50V C0G 5% SMD 0603 125°C Paper T/R Multilayer Ceramic Capacitors MLCC - SMD/SMT 50volts 10pF 5% C0G CAP CER 10PF 50V 5% NP0 0603 AVX 10pF ±5% 50V dc C0G Dielectric SMD Ceramic Multilayer Capacitor, 0603 Package Cap Ceramic 10pF 50V C0G 5% SMD 0603 125C Paper T/R CAP MLCC, 10PF, 50V, C0G/NP0, 5%, 0603 CAP, MLCC, C0G/NP0, 10PF, 50V,0603, REEL Capacitor;Ceramic;Cap10pF;Tol5%;Vol-Rtg50VDC;SMT;0603;COG Capacitor;Ceramic;Cap10pF;Tol5%;Vol-Rtg50VDC;SMT;0603;COG(NPO);Tape&Reel AVX Standard 系列 10pF ±5% C0G电介质 50 V 直流 SMD 多层陶瓷电容器 (MLCC) , 0603封装 KC 10pF 0603 5% 50V NP0 |
| Category |
Business
| MOQ | 20000 | Product | General Type MLCCs |
| Unit Pack | 4000 | Other Names | 478-1163-1 |
| Product Category | Multilayer Ceramic Capacitors MLCC - SMD/SMT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85322400 |
| Rad Hardened | No | ||
Electrical
| Voltage | 50 Vdc | Tolerance | 5 % |
| Capacitance | 10 pF | Range deg/s | :- |
| Voltage Rating | 50 V | Capacitance - Input | :0603 [1608 Metric] |
| Capacitance @ Vr, F | :C0G / NP0 | Resistance Tolerance | -5% |
Mechanical
| Depth | 0.81 mm | Width | 0.81 mm |
| Height | 0.9(Max) mm | Length | 1.6mm |
| Weight | 0.1 | Diameter | Not Required mm |
| Packaging | Reel | Termination | SMT |
| Construction | Flat | Mounting Type | Surface Mount |
| Reel Capacity | :4000 | Terminal Type | :Surface Mount (SMD, SMT) |
| Mounting Style | Surface Mount | Number of Pins | :2 |
| Package / Case | 0603 | Material Finish | :MSL 1 - Unlimited |
| Thickness (Max) | 0.035" (0.90mm) | Length - Overall | 1.6 mm |
| Size / Dimension | 0.81 mm W x 1.6 mm L x 0.63 mm H | Tape Width - Max | :8mm |
| Termination Style | SMD/SMT | Dielectric Material | C0G |
| Shell Size - Insert | 0603(1608mm) | Mounting Hole Diameter | 0603 |
| Wire Gauge or Range - AWG | Not Required | ||
Product Info
| Type | Flat | Series | 0603 |
| Technology | Standard | Applications | General Purpose |
| Failure Rate | Not Required | ||
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | C0G (NP0) |
