点击放大查看

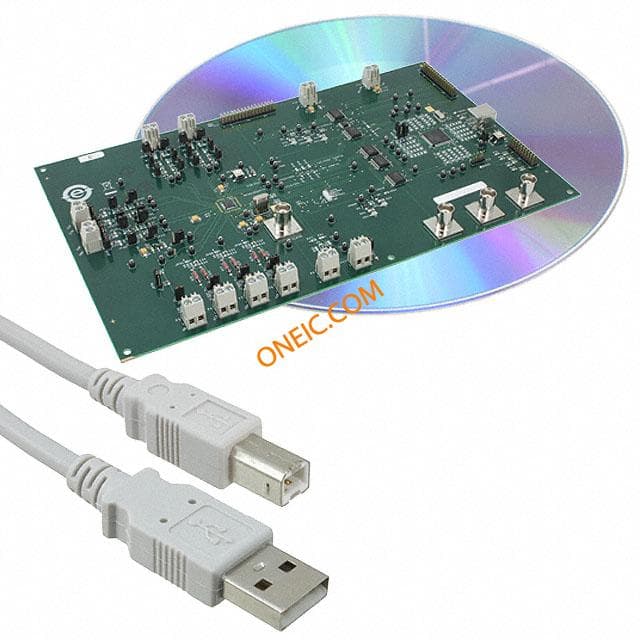

EVAL-ADE7878EBZ
| Manufacturer | |
| Description | Evaluation Board For Poly Phase Multifunction Energy Metering IC With Total And Fundamental Powers BOARD EVAL FOR ADE7878 Power Management IC Development Tools EVAL BRD ADE7878 ADE7878, ENERGY METER, EVAL BOARD Analog Devices 评估测试板 |
| Category |
Business
| Product | Evaluation Boards | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84718000 |
Electrical
| Interface | SPI | ||
Mechanical
| Weight | 0.3 | Packaging | Bulk |
Product Info
| Type | Development Kit | Series | UG-146 |
| Contents | Board | Embedded | Yes, DSP |
| Features | :External Transducers, LED Indicators, Logic Outputs | Function | 3-phase electrical energy measurement IC |
| Kit Type | :Data Acquisition | Kit Contents | :Board |
| Main Purpose | Power Management, Energy/Power Meter | Manufacturer | :(Not Available) |
| Tool Type Feature | ADE7878 | RF Family/Standard | ADE7878 |
| Utilized IC / Part | ADE7878 | Chipset Manufacturer | :Analog Devices |
| Secondary Attributes | USB Interface | Application Specifics | :Energy Meter |
| MCU Supported Families | :ADE7878 | For Use With/Related Products | ADE7878 |
