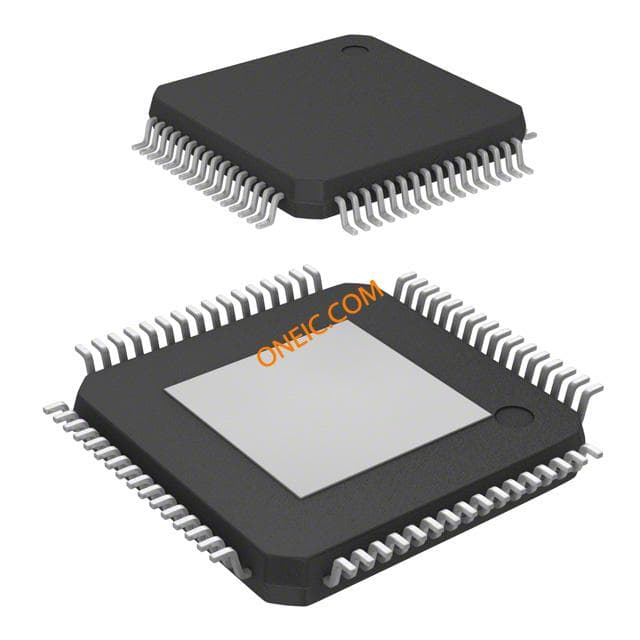

ADV7611BSWZ-P
| Manufacturer | |
| Description | HDMI Receiver 2RX 64-Pin LQFP EP Tray HDMI Receiver 2RX 64-Pin LQFP EP T/R IC RCVR HDMI 165MHZ LP 64LQFP HDMI Receiver 165MHz Low Power LQFP64 Video ICs Low Pwr 165MHz HDMI Receiver RX, HDMI, LOW POWER, 165MHZ, 64LQFP 1通道 音频和视频编码器和解码器, 适用于3D 视频标准, 64针 LQFP封装 Video ICs 1 INPUT LOW POWER STAND ALONE HDMI 1.4RX |
| Category |
Business
| Other Names | ADV7611BSWZP | Standard Package | Trays, Tape & Reel |
| Factory Pack Quantity | 160 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | 3D Video |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| Interface | :I2C, DVI, HDMI | Power - Input | Single |
| Voltage Rating | 1.8 V | Current - Output | :95.7mA |
| Current - Supply | 36.9|57.6|114.4|188.1 mA | Voltage - Supply | 1.71|3.14 V |
| Power Supply Type | Single | Number of Channels | 1 |
| Voltage - Supply Span (Typ) | Not Required V | ||
Mechanical
| Width | 10.2mm | Height | 1.45mm |
| Length | 10.2mm | Weight | 0.299 |
| Packaging | Tray | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :64 | Package / Case | 64LQFP EP |
| Package Cooled | LQFP EP | Material Finish | :MSL 3 - 168 hours |
| Package Quantity | LQFP EP | Size / Dimension | 10.2 x 10.2 x 1.45mm |
| Number of Positions | 64 | Supplier Device Package | 64-LQFP EP (10x10) |
Product Info
| Type | HDMI Receiver | Series | ADV7611 |
| Applications | HDTV, Projectors, Set-Top Boxes | Number of Receivers | 2 |
| Number of Transmitters | Not Required | ||
Environmental
| Operating Temperature | +85 °C | Operating Temperature - Junction | 85C |
