ADT7410TRZ
| Manufacturer | |
| Description | Temp Sensor Digital Serial (I2C) 8-Pin SOIC N T/R IC SENSOR TEMP 16BIT I2C 8SOIC Temperature Sensor 0.5C 16-Bit I2C SOIC8 Board Mount Temperature Sensors 0.5 Deg C Accurate 16-Bit Digital I2C SENSOR, TEMP, 16BIT, +/-0.5DEG, 8SOIC Temperature sensor SOIC-8N, ADT7410TRZ, Analog Devices Analog Devices , 16 位 温度传感器, ±0.5°C, 串行 - I2C接口, 8针 SOIC封装 |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 98 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Accuracy | ±0.5 °C | Interface | Serial (I2C) |
| Output Fan | No | Resolution | 15+Sign Bit |
| Output Type | Digital | Sensor Type | Internal |
| Sensing Range | :-55°C to +150°C | Number of Bits | 16 bit |
| Voltage Rating | 2.7 V | Current - Output | 230 uA |
| Voltage - Supply | 2.7 to 5.5 V | Digital I/O Lines | 2-Wire, I2C, SMBus |
| Resolution (Bits) | :16bit | Voltage - Supply (Min) | 5.5 V |
Mechanical
| Width | 4mm | Height | 1.75mm |
| Length | 5mm | Weight | 0.0001 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Contact Timing | :± 0.5°C |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | SOIC N |
| Size / Dimension | 5 x 4 x 1.75mm | Number of Positions | 8 |
| Supplier Device Package | 8-SOIC N | ||
Product Info
| Series | ADT7410 | Function | Temp Sensor |
| Topology | ADC (Sigma Delta), Oscillator, Register Bank | Base Unit | :7410 |
| Output Alarm | No | Configuration | Local |
Environmental
| Sensing Temperature | -55°C ~ 150°C | Operating Temperature | -55°C ~ 150°C |
| Sensing Temperature - Local | :-55°C | Operating Temperature - Junction | 150C |
Documents & Media
Similar Parts
ADSP-BF561SBBCZ-5A
analog devices
DSP Fixed-Point 16-Bit 500MHz 500MIPS 256-Pin CSP-BGA IC DSP CTRLR 32B 500MHZ 256CPBGA Blackfin Symmetric Multi-Proc 500MHz BGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor Analog Devices Blackfin 系列 32bit 数字信号处理器, 500MHz, 16 位 ROM ROM, 328 kB RAM, 256针 BGA封装
ADT7410TRZ
analog devices
Temp Sensor Digital Serial (I2C) 8-Pin SOIC N T/R IC SENSOR TEMP 16BIT I2C 8SOIC Temperature Sensor 0.5C 16-Bit I2C SOIC8 Board Mount Temperature Sensors 0.5 Deg C Accurate 16-Bit Digital I2C SENSOR, TEMP, 16BIT, +/-0.5DEG, 8SOIC Temperature sensor SOIC-8N, ADT7410TRZ, Analog Devices Analog Devices , 16 位 温度传感器, ±0.5°C, 串行 - I2C接口, 8针 SOIC封装
ADSP-BF561SKBCZ-6A
analog devices
DSP Fixed-Point 16-Bit 600MHz 600MIPS 256-Pin CSP-BGA IC DSP CTRLR 32B 600MHZ 256CPBGA Blackfin Symmetric Multi-Proc 600MHz BGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor DSP, 16BIT, BLACKFIN PROC, 256CPBGA
ADSP-BF561SKBCZ-5V
analog devices
DSP Fixed-Point 16-Bit 533MHz 533MIPS 256-Pin CSP-BGA IC DSP 32BIT 500MHZ 256CSPBGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor
ADSP-BF537KBCZ-6AV
analog devices
DSP Fixed-Point 16-Bit 600MHz 600MIPS 182-Pin CSP-BGA IC DSP CTLR 16BIT 182CSPBGA ADSP-BF537KBCZ-6AV, 16bit Digital Signal Processor 600MHz ROM, SRAM, 32kb RAM, 182-Pin CSP BGA Digital Signal Processors & Controllers - DSP, DSC IC Low Pwr Blackfin w/ Adv Embd Cnct IC, DSP, 16BIT, 182CSPBGA

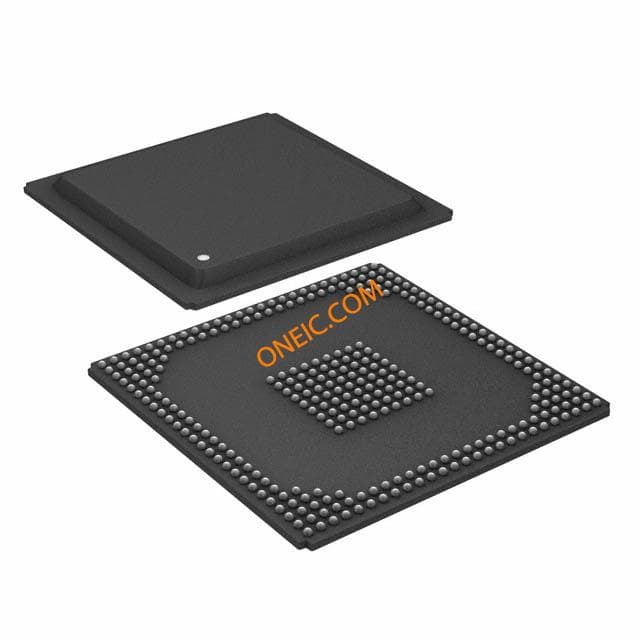

ADSP-BF561SKBZ500
analog devices
DSP Fixed-Point 16-Bit 500MHz 500MIPS 297-Pin BGA IC DSP 32BIT 500MHZ 297PBGA Digital Signal Processors & Controllers - DSP, DSC Blackfin Symmetric Multi-Processor DSP, 16BIT, BLACKFIN PROC, 297PBGA

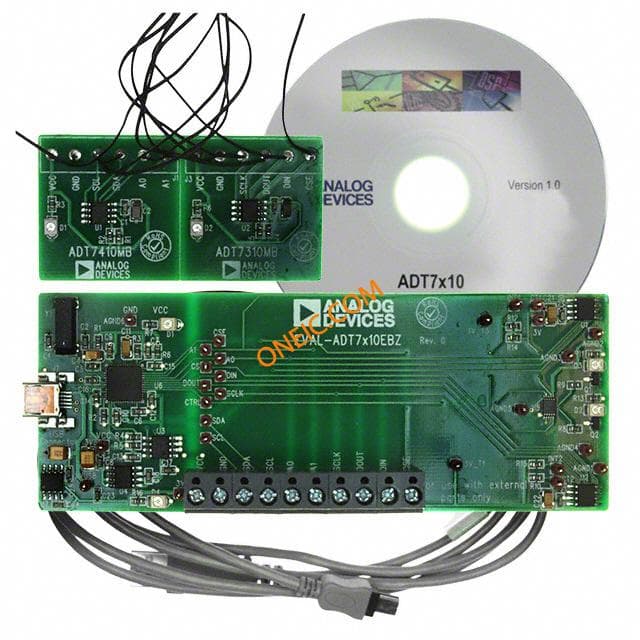

EVAL-ADT7X10EBZ
