ADP1720ARMZ-R7
| Manufacturer | |
| Description | LDO Regulator Pos 1.2V to 5V 0.05A 8-Pin MSOP T/R IC REG LDO ADJ 50MA 8MSOP Voltage Regulators - Standard 50mA Hi VTG Micropwr LINEAR, REG, 0.05A, 1.225V TO 5V, 8MSOP Analog Devices , LDO 调节器, 可调整的输出, 50mA, 1.225 → 5 V输出 1.2495V, 8针 MSOP封装 Linear Voltage Regulators 50mA Hi VTG Micropwr |
| Category |
Business
| Other Names | ADP1720ARMZ-R7CT | Standard Package | Tape & Reel |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Accuracy | ±2 % | Output Type | Adjustable |
| Regulator Type | Linear | Voltage Rating | 4 V |
| Line Regulation | 0.15 % | Load Regulation | 0.01 % |
| Current - Output | 0.05 A | Voltage - Supply | 0.1@1mA|0.2@10mA|0.3@50mA V |
| Number of Outputs | 1 | Regulator Topology | Positive Adjustable |
| Number of Regulators | 1 | Voltage - Input (Min) | 1.225 V ~ 5 V |
| Voltage - Output (Max) | :5V | Output Voltage Accuracy | �2 % |
| DC Voltage - Input (Min) | 4 V | Current - Quiescent (Max) | 0.025 mA |
| Voltage - Output (Min/Fixed) | :1.225V | Common Mode Transient Immunity (Min) | Extended Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :28V | ||
Mechanical
| Weight | 0.000025 | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | MSOP |
| Number of Positions | 8 | Supplier Device Package | 8-MSOP |
Product Info
| Type | LDO | Series | ADP1720 |
| Features | Short Circuit Protection|Thermal ... | Polarity | Positive |
| Topology | LDO | Other Specifications | :1.22V to 5V |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
ADP1720-EVALZ
analog devices
Evaluation Board For ADP1720 Micropower Linear Regulator BOARD EVAL FOR ADP1720-ADJ Power Management IC Development Tools ADP1720 Eval Brd ADP1720, LDO, EVAL BOARD

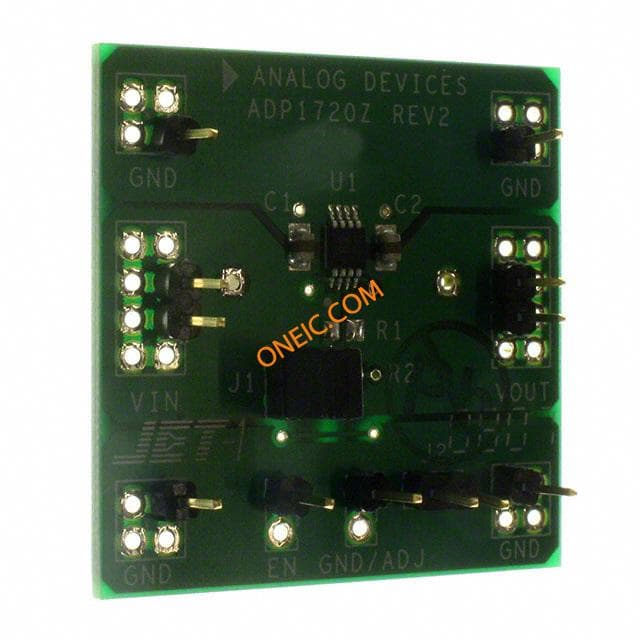

ADP1720-5-EVALZ
analog devices
Evaluation Board For The ADP1720 BOARD EVAL FOR ADP1720-5 Power Management IC Development Tools 50mA Low Iq High Voltage low Dropout Reg 50MA LOW IQ HIGH VOLTAGE LOW DROPOUT REG ADP1720, LDO, MICROPOWER, EVALUATION BOARD
ADP1720ARMZ-R7
analog devices
LDO Regulator Pos 1.2V to 5V 0.05A 8-Pin MSOP T/R IC REG LDO ADJ 50MA 8MSOP Voltage Regulators - Standard 50mA Hi VTG Micropwr LINEAR, REG, 0.05A, 1.225V TO 5V, 8MSOP Analog Devices , LDO 调节器, 可调整的输出, 50mA, 1.225 → 5 V输出 1.2495V, 8针 MSOP封装 Linear Voltage Regulators 50mA Hi VTG Micropwr

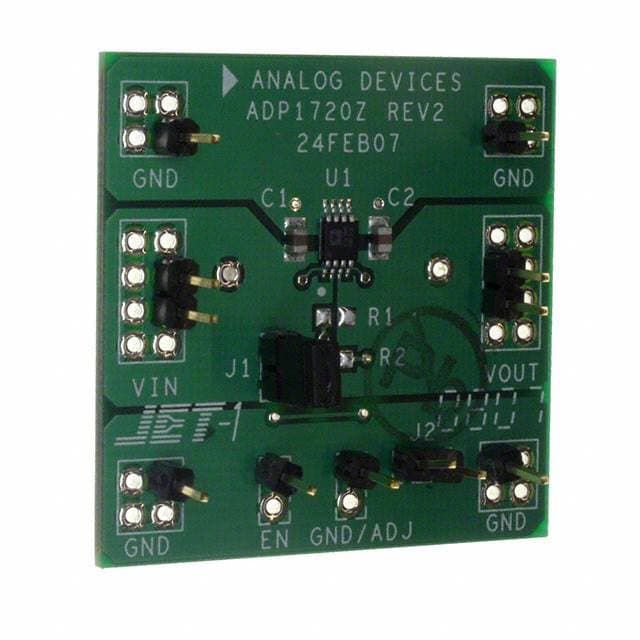

ADP1720-3.3-EVALZ
