ADN4690EBRZ
| Manufacturer | |
| Description | LVDS Transceiver 0.65V 8-Pin SOIC N Tube IC TXRX MLVDS 100MBPS 8SOIC LVDS Interface IC 100Mbps Half-Duplex 3.3V Hi Spd IC, TRANSCEIVER, H-DUPLEX, 8NSOIC , 100MBps LVDS 收发器, LVTTL/ MLVDS输入, 3 → 3.6 V, 8针 SOIC封装 |
| Category |
Business
| Standard Package | 98 | Factory Pack Quantity | 98 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Data Rate | 100Mbps | Input Signal | LVTTL|MLVDS |
| Voltage Rating | 3.3 | Data Rate (Max) | 100 |
| Current - Output | 16 mA | Voltage - Supply | 3.3V |
| Number of Elements | 1 | Voltage - I/O High | 0.05 |
| Receiver Hysteresis | 25mV | Voltage - Output (Max) | 0.65 |
| Power Dissipation (Max) | 94 mW | Delay Time - Propagation | 6 ns |
| Propagation Delay tpLH / tpHL (Max) | 6 | ||
Mechanical
| Width | 4(Max) | Weight | 0.5 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Length - Overall | 5(Max) |
| Package Quantity | SOIC N | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC N |
Product Info
| Type | Transceiver | Duplex | Half |
| Series | ADN4690E | Features | :Multipoint, Low Voltage Differential Signalling Transceivers, ESD Protection |
| Function | Transceiver | Kit Type | :Interface |
| Protocol | LVDS, Multipoint | Kit Contents | :- |
| Number of Drivers | 1 | Number of Receivers | 1 |
| Chipset Manufacturer | :Analog Devices | Application Specifics | :Transceiver |
| Printed Circuit Board | 8 | Number of Drivers/Receivers | 1/1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
923650-08
3m interconnect solutions
08-PIN SOIC NARROW TEST CLIP, ALLOY SOIC Surface Mount 8-PIN TEST CLIP ALLOY SOIC .15" IC TEST CLIP 8 WAYS Test Clips 8P SOIC SMT NARROW TEST CLIP, 8WAY, SOIC SOICNarrowTestClip,8-Pin,Alloy IC test clips SO-8, 923650-08, 3M
EVAL-ADN469XEHDEBZ
Analog Devices

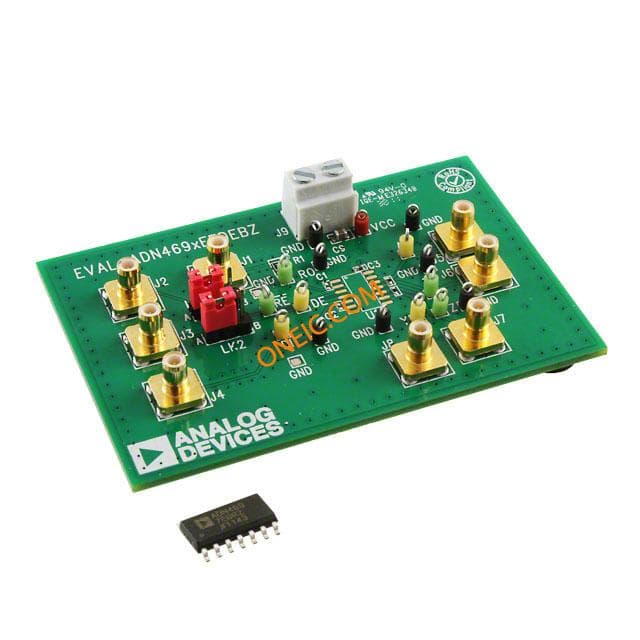

High Speed Evaluation Board For Half-Duplex M-LVDS Transceivers ADN4690E, ADN4691E, ADN4694E, And ADN4696E EVAL BOARD FOR ADN469XEHD Other Development Tools ADN469XE EVAL BRD ADN469X, M-LVDS TXRX, EVAL BOARD
