ADM232AARWZ
| Manufacturer | |
| Description | Dual Transmitter/Receiver RS-232 16-Pin SOIC W Tube IC TX/RX DUAL RS-232 5V 16SOIC ADM232AARWZ, Line Transceiver, EIA-232-E, RS-232, V.28 2-TX 2-RX 2-TRX, 5V, 16-Pin SOIC W RS-232 Interface IC Hi-Spd 5V CMOS Driver/Receiver IC, TXRX, DUAL RS-232, 16SOIC Analog Devices 200kbps 线路收发器, RS-232接口, 2-TX 2-RX, 5 V, 16针 SOIC W封装 |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 47 |
| Standard Package Name | SOIC W | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ESD Protection | No |
Electrical
| Data Rate | 200(Min) Kbps | Interface | EIA-232-E|RS-232|V.28 |
| Input Signal | Single-Ended | Signal Types | Single-Ended |
| Power - Input | Single | Data Rate (Max) | Point-to-Point |
| Current - Output | 8 mA | Current - Supply | 8 |
| Voltage - Supply | 5 V | Power Supply Type | Single |
| Receiver Hysteresis | 400mV | Voltage - Supply Span (Typ) | Not Required V |
| Number of Receivers per Line | 1 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 7.6mm | Height | 2.35mm |
| Length | 10.5mm | Weight | 0.000638 |
| Packaging | Tube | Case Color | :WSOIC |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16SOIC W | Package Cooled | SOIC W |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 10.5(Max) |
| Package Quantity | SOIC W | Size / Dimension | 10.5 x 7.6 x 2.35mm |
| Number of Positions | 16 | Shell Size - Insert | 2.35(Max) |
| Supplier Device Package | 16-SOIC W | ||
Product Info
| Type | Transceiver | Duplex | Full |
| Series | ADM232A | DELETED | Compliant |
| Function | Line Transmitter/Receiver | Protocol | RS232 |
| Shutdown | No | Communications | RS-232 |
| Number of Drivers | 2 | Number of Receivers | 2 |
| Printed Circuit Board | 16 | Number of Transmitters | 2 |
| Number of Drivers/Receivers | 2/2 | Number of Transmitters/Receivers | 1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

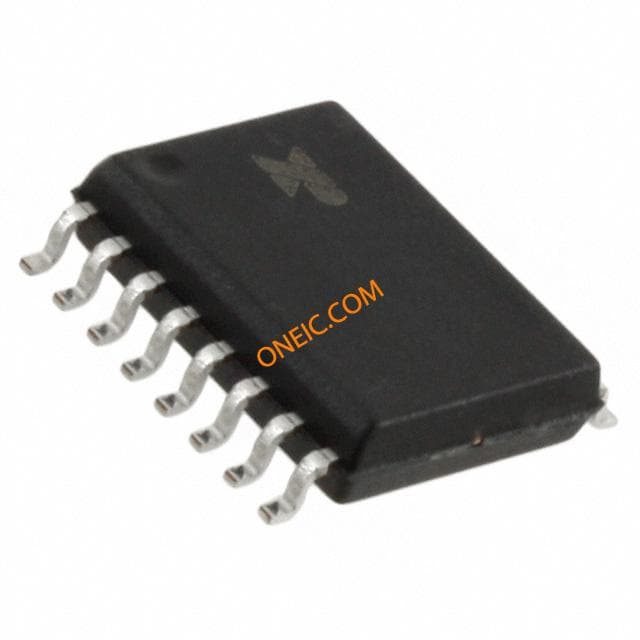

SP232AET-L
Exar
RS-232 Interface IC RS232 ESD 2KV temp -40C to 85C Dual Transmitter/Receiver RS-232 16-Pin SOIC W IC DVR/RCVR RS232 LP 16WSOIC Transceiver,L Driver,Receiver,2/2,RS232 IC, TRANSCEIVER RS-232 +5V, WSOIC16 EXAR 120kbps 双线收发器, RS-232接口, 2-TX 2-RX, 5 V, 16针 SOIC W封装
ADM232AARWZ
analog devices
Dual Transmitter/Receiver RS-232 16-Pin SOIC W Tube IC TX/RX DUAL RS-232 5V 16SOIC ADM232AARWZ, Line Transceiver, EIA-232-E, RS-232, V.28 2-TX 2-RX 2-TRX, 5V, 16-Pin SOIC W RS-232 Interface IC Hi-Spd 5V CMOS Driver/Receiver IC, TXRX, DUAL RS-232, 16SOIC Analog Devices 200kbps 线路收发器, RS-232接口, 2-TX 2-RX, 5 V, 16针 SOIC W封装
16-350000-11-RC
Aries Electronics
SOCKET ADPTR SOIC/16PIN .300 DIP IC & Component Sockets SOIC DIP ADAPTER ADAPTOR, SOIC TO DIL, 16WAY

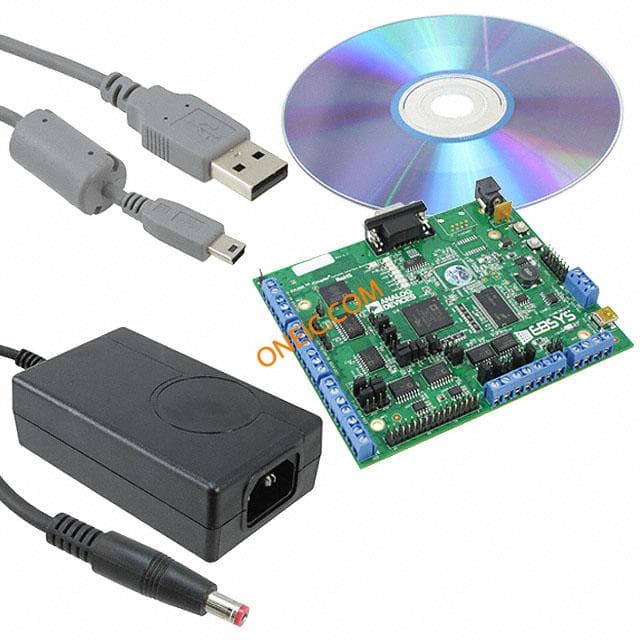

EZLINX-IIIDE-EBZ
