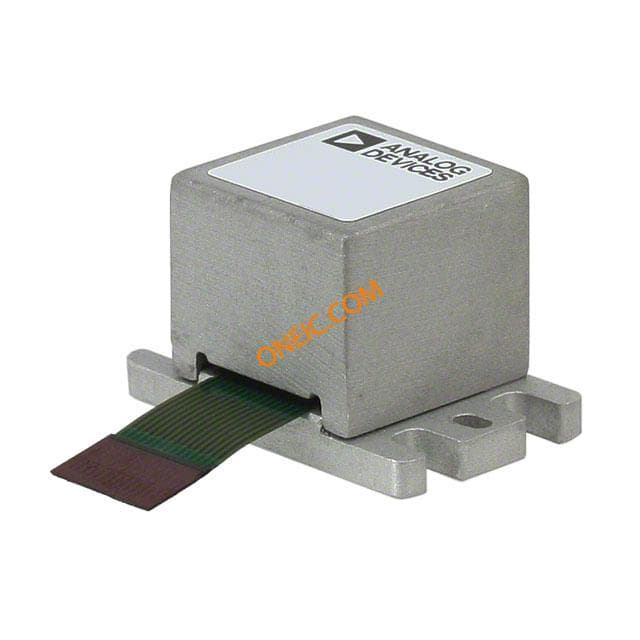

ADIS16228CMLZ
| Manufacturer | |
| Description | Accelerometer Triple ±18g 3.3V 15-Pin Tray IC SENSOR DIGITAL TRI VIB 15-MOD Accelerometers Digital Triaxial Vibration Sensor IC, SENSOR, VIBRATION, 18g, 3 AXIS, ML-15-1 MODULE, VIBRATION SENSOR, TRIAXIAL Acceleration/Vibration sensor, ADIS16228CMLZ, Analog Devices , 3轴 加速表, SPI接口, 最高 5 kHz, 3.15 → 3.6 V, 15针 ML封装 |
| Category |
Business
| Standard Package | Boxed | Factory Pack Quantity | 12 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 90308930 |
Electrical
| Output | :Digital | Interface | :Serial, SPI |
| Output Type | Digital | Sensitivity | 0.3052 mg/LSB |
| Sensor Type | Acceleration | Power - Rated | 3.0 V ~ 3.6 V / 40mA |
| Sensing Angle | X, Y, Z | Sensing Range | ±18g |
| Voltage Rating | 3 | Current - Output | 40 mA |
| Voltage - Supply | 3 to 3.6 V | Digital I/O Lines | SPI |
| Voltage - Supply (Min) | 3.6 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Axis | Triple | Weight | 0 |
| Packaging | Tray | Acceleration | ±18 g |
| Mounting Type | Screw | Mounting Style | SMD/SMT |
| Number of Pins | :15 | Package / Case | Module |
| Material Finish | :MSL 3 - 168 hours | Number of Positions | 15 |
Product Info
| Series | ADIS16228 | Features | Programmable |
| Number of Axes | :3 | Measurement Type | :X, Y, Z |
Environmental
| Acceleration Range | :± 18g | Operating Temperature | -40 to 125 °C |
Documents & Media
Similar Parts
ADIS16228CMLZ
analog devices
Accelerometer Triple ±18g 3.3V 15-Pin Tray IC SENSOR DIGITAL TRI VIB 15-MOD Accelerometers Digital Triaxial Vibration Sensor IC, SENSOR, VIBRATION, 18g, 3 AXIS, ML-15-1 MODULE, VIBRATION SENSOR, TRIAXIAL Acceleration/Vibration sensor, ADIS16228CMLZ, Analog Devices , 3轴 加速表, SPI接口, 最高 5 kHz, 3.15 → 3.6 V, 15针 ML封装
ADIS16228/PCBZ
analog devices
ADIS16228/PCB EVAL. BD. Evaluation Board For Digital Triaxial Vibration Sensorwith FFT Analysis And Storage BOARD EVAL ADIS16228 Acceleration Sensor Development Tools ADIS16228/PCB EVAL. BD. ADIS16228, VIB SENSOR, EVAL BOARD Analog Devices 评估测试板

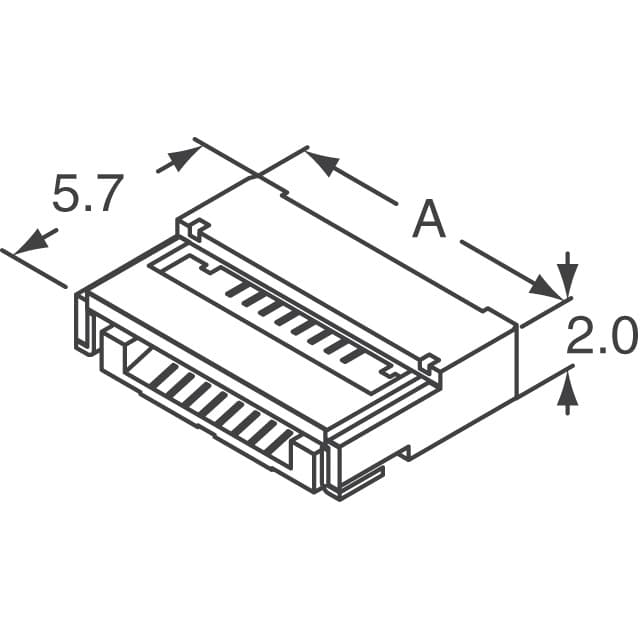

046288015000846+
