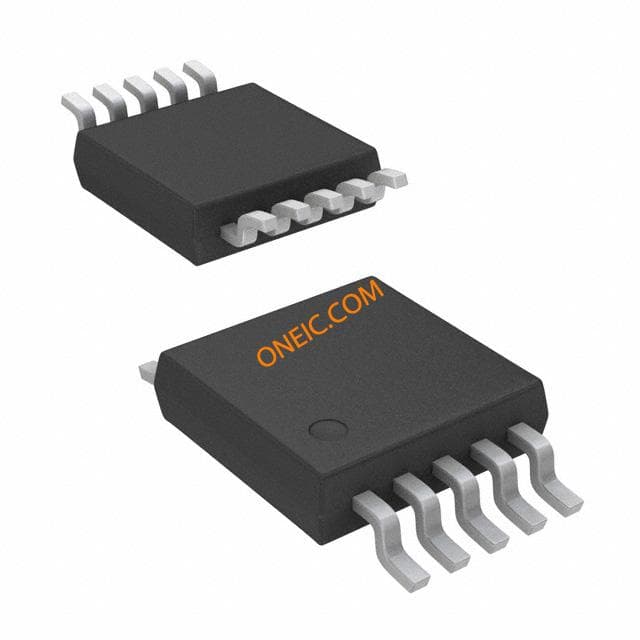

ADG1222BRMZ
| Manufacturer | |
| Description | Analog Audio/Video Crosspoint 960MHz 1 x 1 10-Pin MSOP IC SWITCH DUAL SPST 10MSOP ADG1222BRMZ, Crosspoint Switch, Dual 1 x 1 960MHz Audio/Video 12V, 10-Pin MSOP, MSOP Analog Switch ICs IC 75dB 120 Ohm iCMOS Dual SPST IC, SWITCH, DUAL SPST, SMD, MSOP10 双 1 x 1 视频音频切换器, 960MHz, 音频/视频 12 V, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 50 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Circuit | 2 x SPST - NC | Turn On Time | :130ns |
| Current - Output | 140µA | Current - Supply | 190 uA |
| Delay Time - OFF | :85ns | Voltage - Supply | 10.8 V |
| Power Supply Type | Single|Dual | Number of Channels | :2 |
| Number of Elements | 2 | Voltage - Breakdown | 16.5 V |
| Resistance - RDS(On) | :120ohm | Voltage Supply Source | Single, Dual Supply |
| Switch Function/Rating | SPST | Power Dissipation (Max) | 2.9 mW |
| On-State Resistance (Max) | 200 Ohm | Switch Time (Ton, Toff) (Max) | 130 ns |
Mechanical
| Width | 3mm | Height | 0.85mm |
| Length | 3mm | Weight | 0.0001 |
| Bandwidth | :960MHz | Packaging | Tray |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | -3db Bandwidth | 960 MHz |
| Mounting Style | SMD/SMT | Number of Pins | :10 |
| Package / Case | 10MSOP | Package Cooled | MSOP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | MSOP |
| Size / Dimension | 3 x 3 x 0.85mm | Number of Positions | 10 |
| Supplier Device Package | 10-MSOP | ||
Product Info
| Series | ADG1222 | Function | Switch |
| Base Unit | :1222 | Switch Type | :SPST |
| Card Standard | Audio/Video | Number of Switches | 2 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
