ADF7012BRUZ
| Manufacturer | |
| Description | RF Transmitter ASK/FSK 2.5V/3.3V 24-Pin TSSOP IC XMITTER ASK/FSK/GFSK 24TSSOP ADF7012BRUZ, RF Transmitter 75 to 1000MHz, ASK, FSK, 2.3 to 3.6V 24-Pin TSSOP RF Transmitter MultiCH ISM Band FSK /GFSK/OOK/GOOK/ASK TRANSMITTER, ASK/FSK/GFSK, TSSOP24 , 75 → 1000MHz ASK，FSK 无线功率发射器, 2.3 → 3.6 V, 24针 TSSOP封装 |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 62 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85235290 |
Electrical
| Data Rate | :179.2Kbps | Frequency | 75MHz ~ 1GHz |
| Modulation | ASK/FSK | Data Interface | PCB, Surface Mount |
| Power - Output | -16dBm ~ 14dBm | Voltage Rating | 2.3V |
| Data Rate (Max) | 179.2 kbps | Frequency - Max | :1GHz |
| Frequency - Min | :75MHz | Frequency Range | :75MHz to 1GHz |
| Voltage - Supply | 2.3 V ~ 3.6 V | Frequency - Operating | 1000MHz |
| Current - Transmitting | 35mA | Voltage - Supply (Min) | 3.6V |
| Current - Supply (Main IC) | 16 mA | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 4.4mm | Height | 1.05mm |
| Length | 7.8mm | Weight | 0.001 |
| Bandwidth | :950MHz | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Package Cooled | TSSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 7.8 | Package Quantity | TSSOP |
| Size / Dimension | 7.8 x 4.4 x 1.05mm | Antenna Connector | PCB, Surface Mount |
| Number of Positions | 24 | Shell Size - Insert | 1.05(Max) |
Product Info
| Type | OOK Transmitter | Series | ADF7012 |
| Base Unit | :7012 | Applications | Data Transfer, RKE, Remote Control/Security Systems |
| Number of Bands | 1 | Printed Circuit Board | 24 |
| Modulation or Protocol | ASK, FSK, GFSK, OOK | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
ADF7012BRUZ
analog devices
RF Transmitter ASK/FSK 2.5V/3.3V 24-Pin TSSOP IC XMITTER ASK/FSK/GFSK 24TSSOP ADF7012BRUZ, RF Transmitter 75 to 1000MHz, ASK, FSK, 2.3 to 3.6V 24-Pin TSSOP RF Transmitter MultiCH ISM Band FSK /GFSK/OOK/GOOK/ASK TRANSMITTER, ASK/FSK/GFSK, TSSOP24 , 75 → 1000MHz ASK，FSK 无线功率发射器, 2.3 → 3.6 V, 24针 TSSOP封装
EVAL-ADF7012DBZ5
analog devices

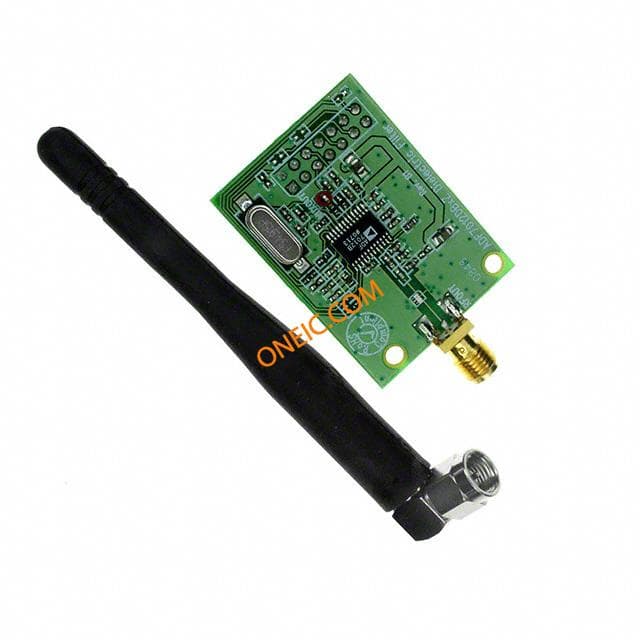

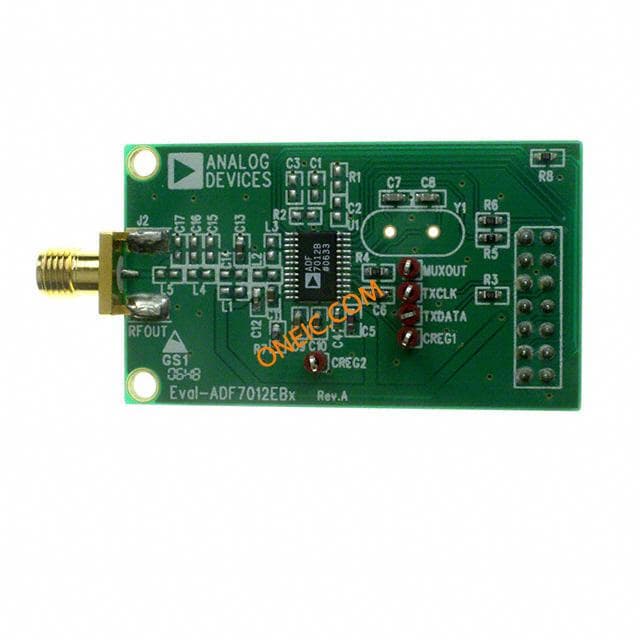

Evaluation Boards For ADF7012 Single Chip Low Power UHF Transmitter BOARD DAUGHTER FOR ADF7012 Daughter Cards & OEM Boards ADF7012 Eval BRD Analog Devices 嵌入式微控制器 评估子板
