ADF4350BCPZ
| Manufacturer | |
| Description | PLL Frequency Synthesizer Single 32-Pin LFCSP EP IC SYNTH PLL VCO FN/IN 32LFCSP 137.5-4400MHz Synthesizer with VCO LFCSP Phase Locked Loops - PLL WB Synthesizer w/ Intg VCO IC, PLL, 4.4GHZ, 32LFCSP IC, PLL, 4.4GHz, LFCSP-32 Analog Devices 双 137.5 → 4400 MHz 频率合成器 , 32针 LFCSP VQ封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Factory Pack Quantity | 490 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | Rad Hardened | No |
Electrical
| PLL | Yes | Input | CMOS, TTL |
| Output | Clock | Frequency | :4.4GHz |
| Voltage Rating | 3 V | Frequency - Max | 250 MHz |
| Frequency - Min | 137.5MHz | Frequency Range | 137.5 to 4400 MHz |
| Current - Output | 110 mA | Current - Supply | 110 mA |
| Voltage - Supply | 3.3 V | Divider/Multiplier | Yes/Yes |
| Number of Elements | 1 | Ratio - Input:Output | 1:3 |
| Voltage - Supply (Min) | 3.6 V | Minimum Input Frequency | 10 MHz |
| Differential - Input:Output | No/No | ||
Mechanical
| Width | 5mm | Height | 1mm |
| Length | 5mm | Weight | 0.0001 |
| Packaging | Tray | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :32 |
| Package / Case | 32LFCSP EP | Package Cooled | LFCSP VQ |
| Material Finish | :MSL 3 - 168 hours | Size / Dimension | 5 x 5 x 1mm |
| Number of Positions | 32 | Supplier Device Package | 32-LFCSP-VQ (5x5) |
Product Info
| Type | PLL Frequency Synthesizer | Series | ADF4350 |
| DELETED | Compliant | Plug Type | :Frequency Synthesis |
| Programmable | No | Number of Circuits | 1 |
| RF Family/Standard | ADF4350 | Other Specifications | 10 MHz |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

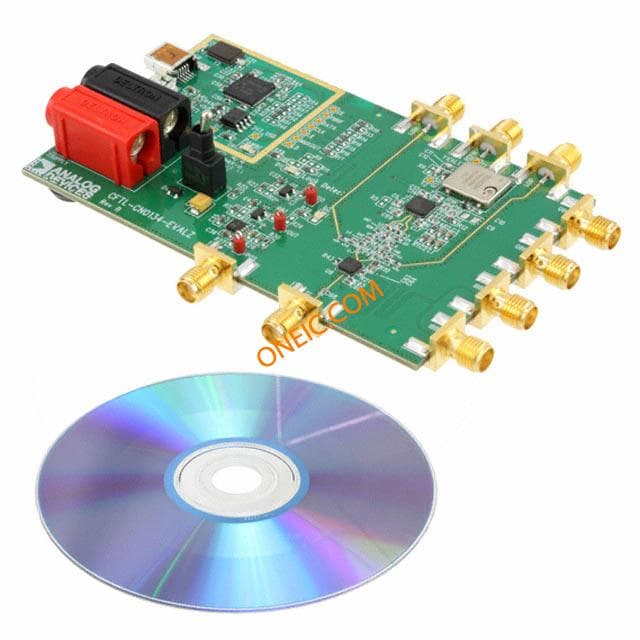

CFTL-CN0134-EVALZ
analog devices
EVALUATION BOARD Evaluation Board For Wideband Synthesizer With Integrated VCO EVAL BOARD CN0134 Clock & Timer Development Tools CFTL-CN0134-EVALZ ADL5375, TRANSMITTER, EVAL BOARD
$13.0098
Details
ADF4350BCPZ
analog devices
PLL Frequency Synthesizer Single 32-Pin LFCSP EP IC SYNTH PLL VCO FN/IN 32LFCSP 137.5-4400MHz Synthesizer with VCO LFCSP Phase Locked Loops - PLL WB Synthesizer w/ Intg VCO IC, PLL, 4.4GHZ, 32LFCSP IC, PLL, 4.4GHz, LFCSP-32 Analog Devices 双 137.5 → 4400 MHz 频率合成器 , 32针 LFCSP VQ封装
$70.4324
Details

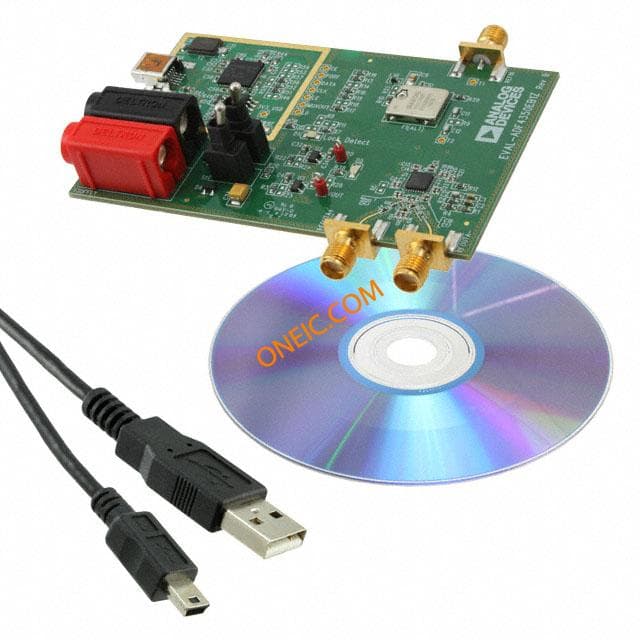

EVAL-ADF4350EB1Z
