ADA4001-2ARZ
| Manufacturer | |
| Description | OP Amp Single GP R-R O/P ±15V 8-Pin SOIC N IC OPAMP JFET 16.7MHZ RRO 8SOIC Precision Amplifiers Low Inpt Bias Crnt RRO JFET Dual OP AMP, PRECISION, 16.7MHZ, 8SOIC Analog Devices 低噪声 运算放大器, 16.7kHz 轨至轨, 8针 SOIC |
| Category |
Business
| Other Names | ADA40012ARZ | Standard Package | 98 |
| Factory Pack Quantity | 98 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Gain | 112 dB | PSRR | 96 |
| Slew Rate | 25 V/µs | Output Type | Rail to Rail |
| Transistor Type | :JFET | CMRR, PSRR (Typ) | 96 |
| Current - Output | 2mA | Current - Supply | 3@±15V |
| Voltage - Supply | 10 V ~ 36 V, ±5 V ~ 18 V | Power Supply Type | Dual |
| Number of Channels | 1 | Current - Input Bias | 20pA |
| Number of ADCs / DACs | :2 | Voltage - Input (Min) | 500µV |
| Gain Bandwidth Product | 16.7MHz | Rail-to-Rail Operation | Rail to Rail Output |
| Current - Input Bias (Max) | 0.00003@±15V | Current - Output / Channel | 50mA |
| Input Offset Current (Max) | 0.00002@±15V | Voltage - Input Offset (Max) | 1.5@±15V |
| Common Mode Transient Immunity (Min) | Extended Industrial | Voltage - Output Difference (Typ) @ Distance | 112 |
Mechanical
| Width | 4(Max) | Weight | 0.299 |
| Bandwidth | :16.7MHz | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| -3db Bandwidth | 10.3MHz | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC N | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC N |
Product Info
| Type | General Purpose Amplifier | Series | ADA4001-2 |
| Shutdown | No | Technology | JFET |
| Manufacturer | Low Noise Amplifier | Amplifier Type | J-FET |
| Number of Circuits | 2 | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
EVAL-PRAOPAMP-1KSZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD SINGLE AMP SC70-5 EVAL-PRAOPAMP-1KSZ, Development Kit, Single 5 Lead SC70 (KS-5) Evaluation Board Amplifier IC Development Tools EVAL-PRAOPAMP-1KSZ Analog Devices Precision 模拟开发套件

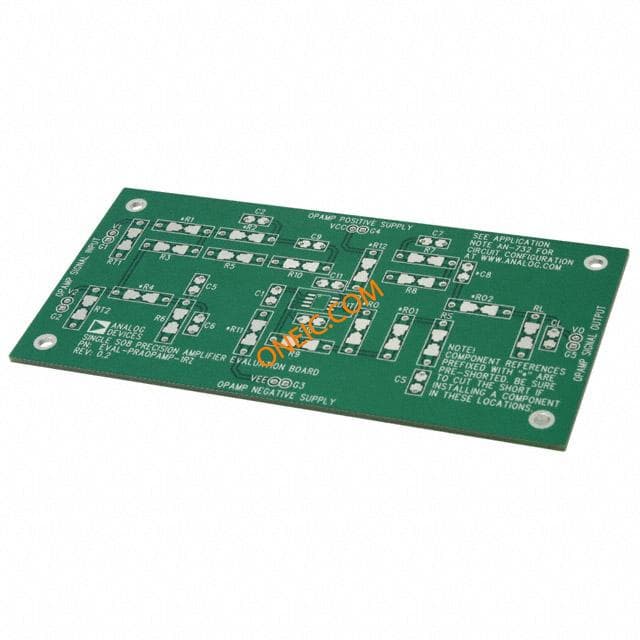

EVAL-PRAOPAMP-1RZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD SINGLE AMP 8SOIC EVAL-PRAOPAMP-1RZ, Development Kit, Single 8-Lead SOIC (R-8) Evaluation Board Amplifier IC Development Tools EVAL-PRAOPAMP-1RZ Analog Devices 模拟开发套件

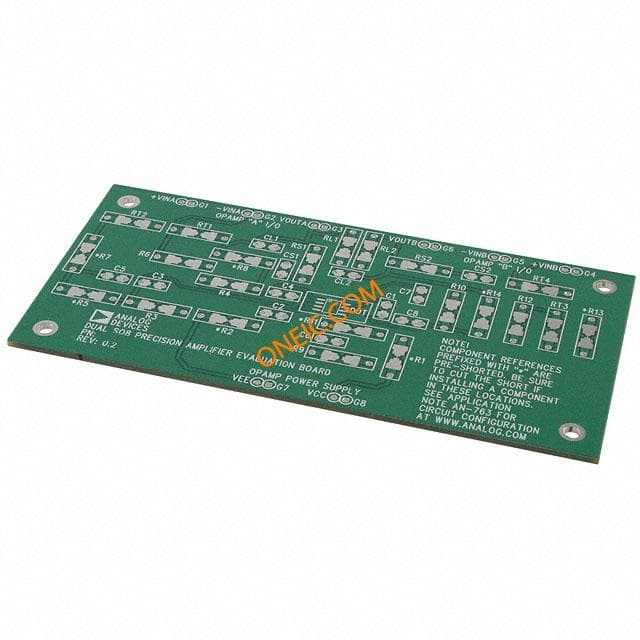

EVAL-PRAOPAMP-2RZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD DUAL AMP SOIC EVAL-PRAOPAMP-2RZ, Development Kit, Dual 8-Lead SOIC (R-8) Evaluation Board Amplifier IC Development Tools EVAL-PRAOPAMP-2RZ Analog Devices 模拟开发套件

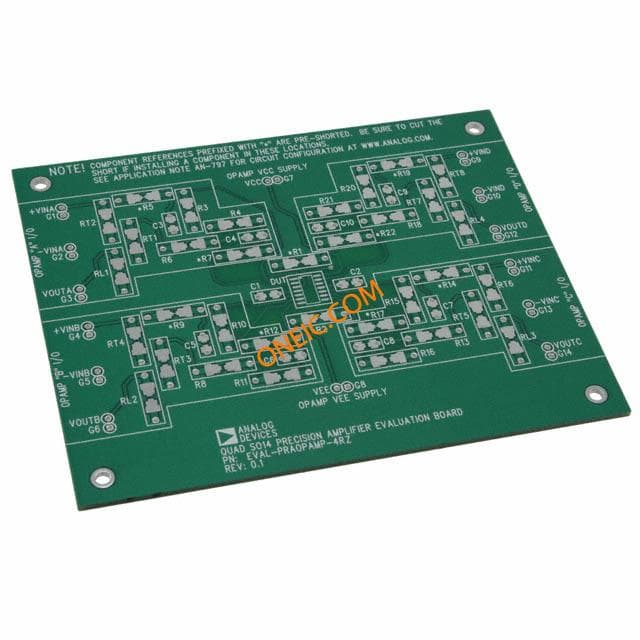

EVAL-PRAOPAMP-4RZ
analog devices
Universal Precision Op Amp Evaluation Board ADAPTOR BOARD QUAD AMP 14SOIC EVAL-PRAOPAMP-4RZ, Development Kit, Quad 14-Lead SOIC (R-14) Amplifier IC Development Tools EVAL-PRAOPAMP-4RZ Analog Devices 模拟开发套件

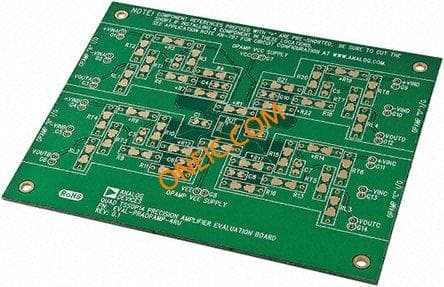

EVAL-PRAOPAMP-4RUZ
