AD9789-EBZ
| Manufacturer | |
| Description | Evaluation Board For 14Bit 2400 MSPS RF Dac With 4Channel Signal Processing BOARD EVAL AD9789 Data Conversion IC Development Tools AD9789 EVAL BRD AD9789, DAC, RF, EVALUATION BOARD Analog Devices 评估测试板 |
| Category |
Business
| Product | Evaluation Boards | Other Names | AD9789EBZ |
| Standard Package | Boxed | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 84733020 |
Electrical
| DAC Type | Voltage | Interface | USB |
| Settling Time | 13ns | Data Interface | SPI™ |
| Number of Bits | 14 | Number of DAC's | 4 |
| Current - Supply | 1.5 mA | Voltage - Supply | 5 V |
| Number of Elements | :- | Sampling Rate (Per Second) | 2.4G |
Mechanical
| Weight | 0.25 | Packaging | Bulk |
Product Info
| Type | Development Kit | Series | AD9789 |
| Contents | Board, Cable, Software | Features | :- |
| Function | Evaluation board connects to a DPG2 to allow for quick evaluation of the AD9789 | Kit Type | :- |
| Kit Contents | :Quick Start Guide, Schematics, PCB Layout files, IBIS Model, SPI Application, DPGDownloader Panel | Tool Type Feature | AD9789 |
| RF Family/Standard | AD9789 | Utilized IC / Part | AD9789 |
| Chipset Manufacturer | :Analog Devices | Application Specifics | :- |
| For Use With/Related Products | AD9789 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
AD9789BBCZ
analog devices

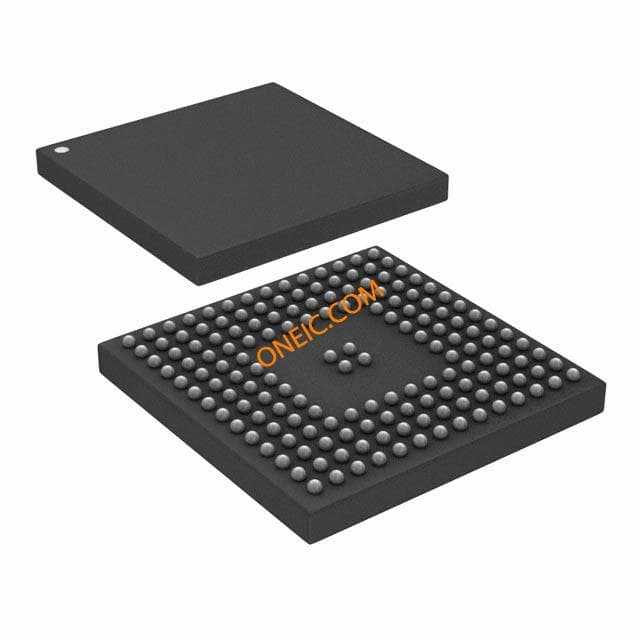

QAM Encoder/Interpolator/Upconverter 164-Pin CSP-BGA IC DAC 14BIT 2.4GSPS 4CH 164-BGA AD9789BBCZ, 14-Bit General Purpose DAC 2400Msps, SPI, 164-Pin CSP BGA Digital to Analog Converters - DAC 14B 2400MSPS RF w/ 4CH Signal Process DAC, 14BIT, 2.4GSPS, 4CH, 164BGA
ADF4150BCPZ
analog devices
PLL Frequency Synthesizer Single 24-Pin LFCSP EP Tray Phase Locked Loops - PLL Fractional-N/ Integer-N Analog Devices 频率合成器 , 24针 LFCSP WQ封装
ADF4350BCPZ
analog devices
PLL Frequency Synthesizer Single 32-Pin LFCSP EP IC SYNTH PLL VCO FN/IN 32LFCSP 137.5-4400MHz Synthesizer with VCO LFCSP Phase Locked Loops - PLL WB Synthesizer w/ Intg VCO IC, PLL, 4.4GHZ, 32LFCSP IC, PLL, 4.4GHz, LFCSP-32 Analog Devices 双 137.5 → 4400 MHz 频率合成器 , 32针 LFCSP VQ封装
PIC18F4550-I/ML
microchip
MCU 8-bit PIC18 PIC RISC 32KB Flash 2.5V/3.3V/5V 44-Pin QFN EP Tube 8 bit MCU QFN44 IC MCU 8BIT 32KB FLASH 44QFN 8-bit Microcontrollers - MCU 32kBF 2048RM FSUSB2 8BIT MCU, 32K FLASH, 2K RAM, USB 44-Pin,32KBFlash,2048RAM,FS-USB2.0 PIC microcontroller; EEPROM:256B; SRAM:204B; 48MHz; QFN44; 2÷5.5V PIC18F 32K QFN44 85°C
AD-DAC-FMC-ADP
analog devices

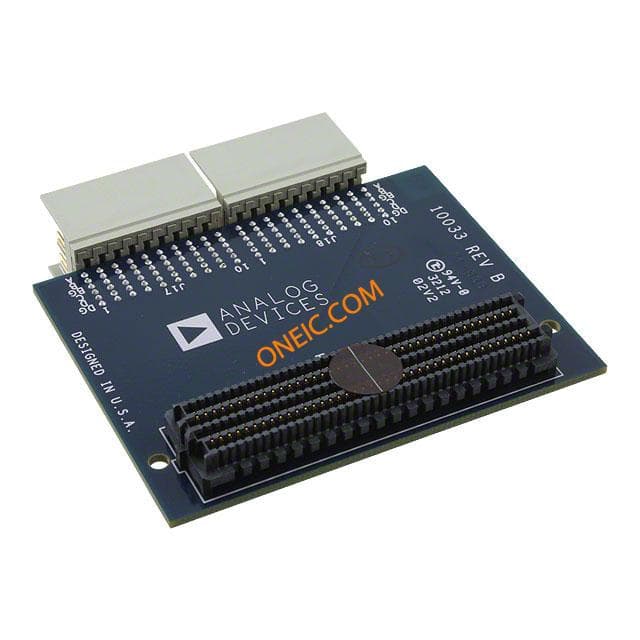

DPG2 EVAL ADAPTER FOR XILINX BOARDS FMC To High-Speed DAC Evaluation Board Adaptor Board BOARD ADAPTER FOR DPG2 XILINX Sockets & Adapters AD-DAC-FMC-ADP EVAL BRD ADAPTER, FMC TO DAC, FOR XILINX Analog Devices 评估测试板
