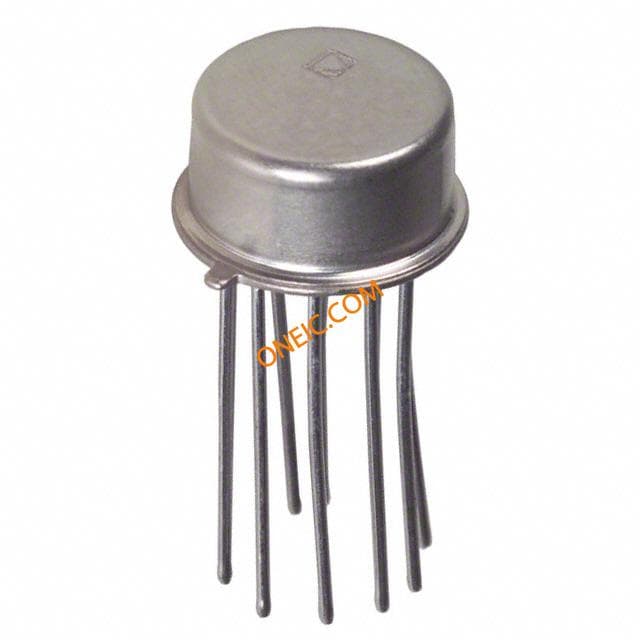

AD636JHZ
| Manufacturer | |
| Description | RMS/DC CONVERTER IC True RMS to DC Converter 10-Pin TO-100 RMS to DC Converter 0V to 1V 1500kHz 10-Pin TO-100 Tube IC CONV RMS-DC LOW LVL TO100-10 AD636JHZ, True RMS-DC Converter, 10-Pin, TO-100 Power Management Specialized RMS/DC CONVERTER IC IC, RMS-DC CONV, 1%, 1.5MHZ, 10TO100 IC, RMS-DC CONV, 1%, 1.5MHZ, TO-100-10 Integrated circuit: RMS/DC converter; 500mW; 5÷24VDC; TO100 RMS/DC Converter IC TO-100, AD636JHZ, Analog Devices 真有效值-直流转换器, 10引脚 TO-100封装 Power Management Specialized - PMIC RMS/DC CONVERTER IC |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Accuracy | :1% | Frequency | 1.5MHz |
| Power - Rated | 500mW | Current - Output | 800µA |
| Current - Supply | 800µA | Voltage - Supply | ±2.5 V ~ 16 V |
| Voltage - Input (Min) | - 5 V to + 3 V | Current - Output (Typ) | 5mA |
| Power Dissipation (Max) | :500mW | Current - Input Bias (Max) | 1 mA |
| Common Mode Transient Immunity (Min) | Commercial | Voltage - Output Difference (Typ) @ Distance | 0 to 1 |
Mechanical
| Width | 9.4mm | Height | 4.7mm |
| Length | 9.4mm | Weight | 0.000012 |
| Bandwidth | :900kHz | Packaging | Tube |
| Lead Style | Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :10 |
| Package / Case | 10TO-100 | Package Cooled | TO-100 |
| Material Finish | :- | Package Quantity | TO-100 |
| Size / Dimension | 9.4 x 9.4 x 4.7mm | Diameter - Outside | 9.4(Max) |
| Number of Positions | 10 | Shell Size - Insert | 4.7(Max) |
| Supplier Device Package | TO-100-10 | ||
Product Info
| Spg | 100 | Type | RSM to DC Converter |
| Series | AD636 | Features | low level |
| Number of Units | 1 | Printed Circuit Board | 10 |
Environmental
| Operating Temperature | 0 to 70 °C | Operating Temperature - Junction | 70C |
