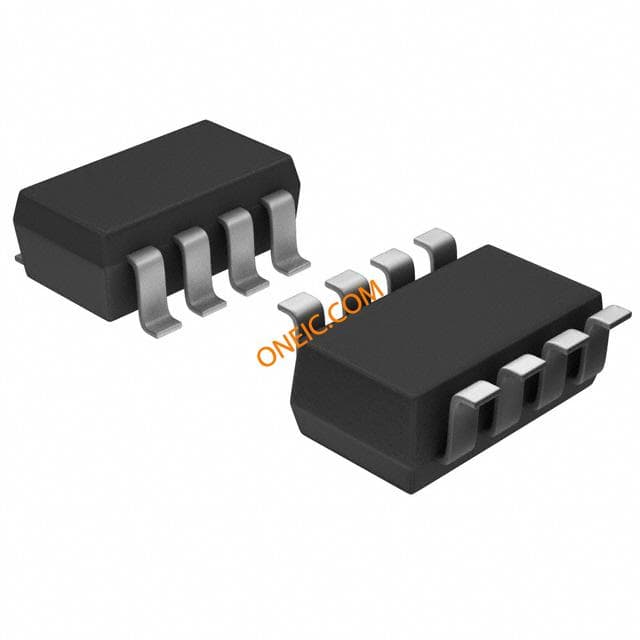

AD5245BRJZ10-R2
| Manufacturer | |
| Description | Digital Potentiometer 256POS 10KOhm Single 8-Pin SOT-23 T/R IC DGTL POT 256POS SOT23-8 AD5245BRJZ10-R2, Digital Potentiometer 10kΩ 256-Position Serial-2 Wire, Serial-I2C 8-Pin SOT-23 Digital Potentiometer ICs IC 256-pos I2C IC, DPOT, 10K, 256POS, SOT23-8 10kΩ 256位置 数字电位计 , 支持多种控制接口, 8针 SOT-23封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AD5245BRJZ10-R2CT | Standard Package | Cut Tape, Tape & Reel |
| Standard Package Name | SOT-23 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Interface | I²C (Device Address) | Tolerance | 30 % |
| Resistance | 10 kOhm | Memory Type | Volatile |
| Power - Input | Single | Current - Output | 3 uA |
| Voltage - Supply | 2.7 V ~ 5.5 V | Power Supply Type | Single |
| Resistance (Ohms) | 10k | Number of Channels | :1 |
| Number of Elements | 1 | Resistance Tolerance | :± 30% |
| Voltage - Supply Span (Typ) | Not Required V | Resistance - Initial (Ri) (Min) | 10 kohm |
| Common Mode Transient Immunity (Min) | Extended Industrial | ||
Mechanical
| Taper | :- | Width | 1.6mm |
| Height | 1.15mm | Length | 2.9mm |
| Weight | 0.1 | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SOT-23 |
| Package Cooled | SOT-23 | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SOT-23 | Size / Dimension | 2.9 x 1.6 x 1.15mm |
| Number of Positions | 256 | Supplier Device Package | SOT-23-8 |
Product Info
| Series | AD5245 | Function | 256 Position I2C Compatible Digital Potentiometer |
| Base Unit | :5245 | Wiper Memory | Volatile |
| Control Interface | Serial (2-Wire, I2C) | Number of Circuits | 1 |
| Number of Taps/Steps | 256 | Number of A/D Converters | Single |
| Number of Positions Loaded | :256 | Number of Positions (Convert To) | :256 |
Environmental
| Operating Temperature | -40 to 125 °C | Temperature Coefficient | 45 ppm/°C Typical |
