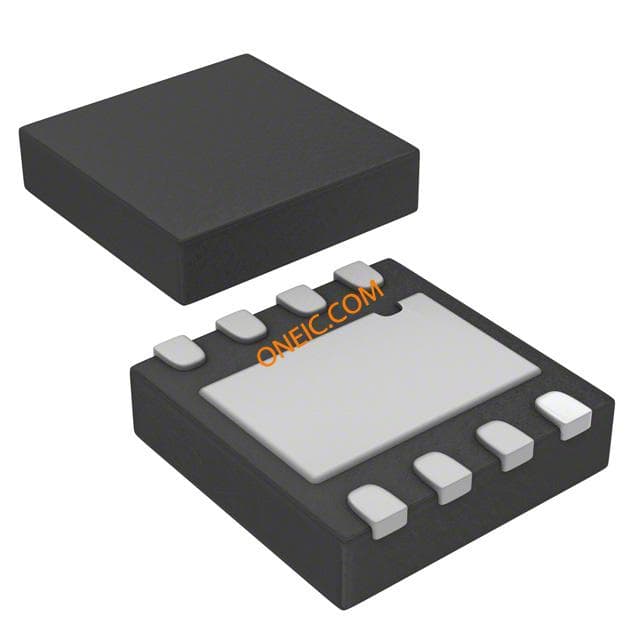

AD5116BCPZ80-500R7
| Manufacturer | |
| Description | Digital Potentiometer 64POS 80KOhm Single 8-Pin LFCSP EP T/R IC DGTL POT 64POS 80K 8LFCSP Digital Potentiometer ICs SGL CH64-Position I2C DIG POT, NON VOL, 64POS, 8LFCSP 80kΩ 64位置 线性 数字电位计, 按钮接口, 8针 LFCSP UD封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AD5116BCPZ80-500R7CT | Standard Package | 500 |
| Standard Package Name | LFCSP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Interface | 2-Wire Pushbutton | Tolerance | 8 % |
| Resistance | 80 kOhms | Memory Type | Non-Volatile |
| Power - Input | Single | Current - Output | 0.75 uA |
| Voltage - Supply | 2.3 V ~ 5.5 V | Power Supply Type | Single |
| Resistance (Ohms) | 80k | Number of Elements | 1 |
| Resistance Tolerance | :± 8% | Voltage - Supply Span (Typ) | Not Required V |
| Resistance - Initial (Ri) (Min) | :80kohm | Common Mode Transient Immunity (Min) | Extended Industrial |
Mechanical
| Taper | :Linear | Width | 2 |
| Weight | 0.299 | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8-UFDFN Exposed Pad, CSP | Package Cooled | LFCSP EP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 2 |
| Package Quantity | LFCSP EP | Number of Positions | 1 |
| Shell Size - Insert | 0.55 | Supplier Device Package | 8-LFCSP-UD (2x2) |
Product Info
| Series | AD5116 | Base Unit | :5116 |
| Wiper Memory | Non Volatile | Control Interface | Push Button |
| Number of Circuits | 1 | Number of Taps/Steps | 64 |
| Printed Circuit Board | 8 | Number of A/D Converters | Single |
| Number of Positions Loaded | :64 | Number of Positions (Convert To) | :64 |
Environmental
| Operating Temperature | -40°C ~ 125°C | Temperature Coefficient | 35 ppm/°C Typical |
Documents & Media
PDF Document
PDF Document
