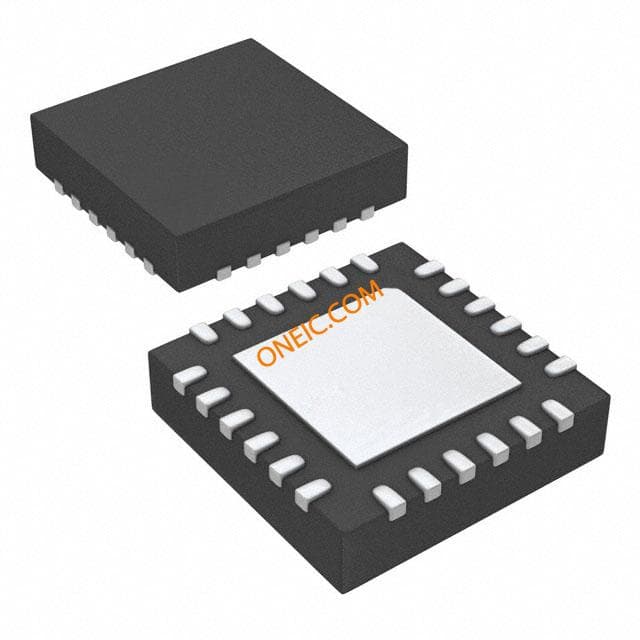

MAX9860ETG+
| Manufacturer | |
| Description | Audio Codec 1ADC / 2DAC 16-Bit 24-Pin TQFN EP IC CODEC MONO AUD 16BIT 24TQFN Interface - CODECs 16-Bit Mono Audio Voice CODEC IC, AUDIO CODEC, 16BIT, 48KHZ, TQFN-24 CODEC, MONO, 16BIT, 1.8V, 48KHZ, 24TQFN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423990 | ||
Electrical
| Coil Type | :Mono | Interface | Serial (2-Wire, I2C) |
| Resolution | 16 bit | Sigma Delta | Yes |
| Data Interface | Serial | Data Rate (Max) | 48 kSPs |
| Number of DAC's | 1 | Current - Output | 9 mA |
| Number of Inputs | :2 | Voltage - Supply | 1.8 V |
| Resolution (Bits) | 16 Bit | Number of Channels | 1ADC /2 DAC |
| Sampling Frequency | 48 ksps | Number of ADCs / DACs | 1 / 2 |
| Voltage - Supply, Analog | 1.7 V ~ 1.9 V | Voltage - Supply, Digital | 1.7 V ~ 1.9 V |
| S/N Ratio, ADCs / DACs (db) Typ | 83 dB, 90 dB | Dynamic Range, ADCs / DACs (db) Typ | 81 / 90 |
Mechanical
| Weight | 0 | Packaging | Tube |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :24 | Package / Case | 24TQFN EP |
| Material Finish | :MSL 1 - Unlimited | Supplier Device Package | 24-TQFN (4x4) |
Product Info
| Type | Voiceband | Series | MAX9860 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
Similar Parts
MAX9860ETG+
Analog Devices, Inc.
Audio Codec 1ADC / 2DAC 16-Bit 24-Pin TQFN EP IC CODEC MONO AUD 16BIT 24TQFN Interface - CODECs 16-Bit Mono Audio Voice CODEC IC, AUDIO CODEC, 16BIT, 48KHZ, TQFN-24 CODEC, MONO, 16BIT, 1.8V, 48KHZ, 24TQFN
