LTM4616EV#PBF
| Manufacturer | |
| Description | Conv DC-DC Dual Step Down 2.7V to 5.5V uModule 144-Pin LGA IC DC/DC UMODULE DUAL 8A 144-LGA LTM4616EV#PBF, Dual Switching Regulator, Buck Controller, 8A, Adjustable, 0.6 to 5V, 1750kHz, 144-Pin LGA DC/DC, UMODULE, DUAL, 8A, 144LGA DC-DC converter; step down; Uin:0.6÷5V; Uout:2.7÷5.5V; 26A Linear Technology , 双 降压 开关稳压器, 8A, 可调输出, 0.6 → 5 V, 1750 kHz, 144针 LGA封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LTM4616EVPBF | Standard Package | 119 |
| Standard Package Name | LGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Isolation | Non-Isolated | Output Type | Adjustable |
| Power - Max | 80W | Regulator Type | Buck Controller |
| Voltage Rating | 5.5 V | Line Regulation | 0.25%/V |
| Load Regulation | 0.5% | Current - Output | 8A, 8A |
| Voltage - Supply | :5.5V | Number of Outputs | 2 |
| Power (Watts) - Max | 80W | Switching Regulator | Yes |
| Frequency - Switching | 1750 kHz | Voltage - Input (Min) | 0.6 ~ 5 V |
| Voltage - Output (Max) | 5 V | Voltage - Output (Min/Fixed) | 0.6 V |
| Common Mode Transient Immunity (Min) | Extended | ||
Mechanical
| Width | 15mm | Height | 2.82mm |
| Length | 15mm | Weight | 0.00167 |
| Packaging | Tray | Mounting Type | Surface Mount |
| Number of Pins | :144 | Package / Case | 144-LGA |
| Package Cooled | LGA | Material Finish | :MSL 3 - 168 hours |

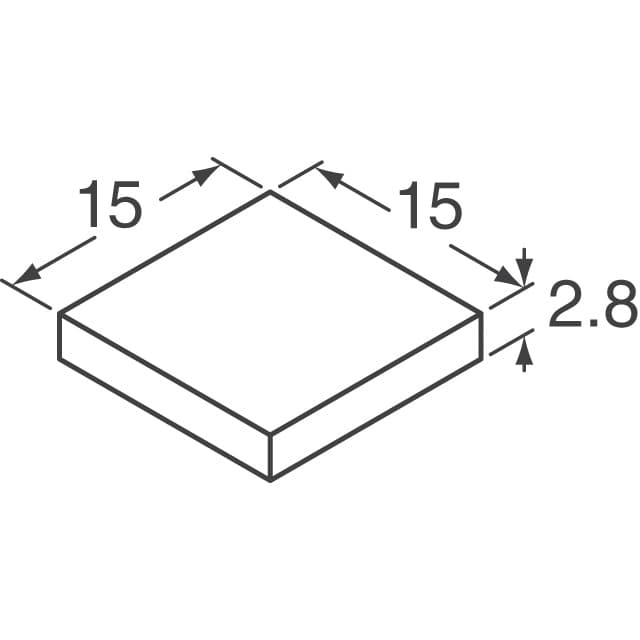

| Package Quantity | LGA | Size / Dimension | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) |
| Number of Positions | 144 | ||
Product Info
| Spg | 119 | Type | Step Down |
| Features | OCP, OTP, OVP, UVLO | Number of Units | 119 |
| Utilized IC / Part | step down | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Online Document
Online Document
