LTM4604AEV#PBF
| Manufacturer | |
| Description | Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 2.375V to 5.5V uModule 66-Pin LGA IC UMODULE DC/DC LV 4A 66-LGA IC SWITCH MODE DC/DC POWER SUPPLY LGA-66 IC, DC/DC, UMODULE, 4A, 66LGA DC-DC converter; step down; Uin:2.375÷5.5V; Uout:0.8÷5V; 8A Linear Technology 直流 - 直流开关调节器, 降压, 4A, 2.375 → 5.5 V输入, 0.8 → 5 V输出, 1.25 MHz, 66针 LGA封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LTM4604AEVPBF | Standard Package | 170 |
| Standard Package Name | LGA | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 00000000 |
Electrical
| Isolation | Non-Isolated | Efficiency | 95% |
| Output Type | Adjustable | Power - Max | 20W |
| Regulator Type | :Switch Mode | Voltage Rating | :5V |
| Line Regulation | 0.2% | Load Regulation | 0.6% |
| Current - Output | 4A | Voltage - Supply | :5.5V |
| Number of Outputs | 1 | Power (Watts) - Max | 20W |
| Switching Regulator | Yes | Frequency - Switching | 1250(Typ) |
| Voltage - Input (Min) | 0.8 ~ 5 V | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Weight | 0 | Packaging | Tray |
| Mounting Type | Surface Mount | Number of Pins | :66 |
| Package / Case | 66-LGA | Material Finish | :MSL 3 - 168 hours |

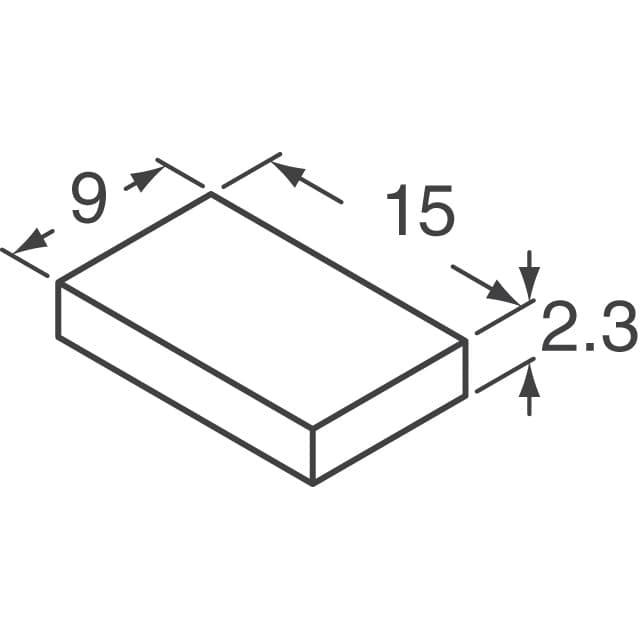

| Package Quantity | LGA | Size / Dimension | 0.59" L x 0.35" W x 0.09" H (15.0mm x 9.0mm x 2.3mm) |
| Number of Positions | 66 | ||
Product Info
| Spg | 170 | Type | Non-Inverting|Inverting|Step Up|S... |
| Features | OCP, OTP, UVLO | Number of Units | 170 |
| Utilized IC / Part | step down | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Online Document
PDF Document
Similar Parts
LTM4604AEV#PBF
Analog Devices, Inc.
Conv DC-DC Single Non-Inv/Inv/Step Up/Step Down 2.375V to 5.5V uModule 66-Pin LGA IC UMODULE DC/DC LV 4A 66-LGA IC SWITCH MODE DC/DC POWER SUPPLY LGA-66 IC, DC/DC, UMODULE, 4A, 66LGA DC-DC converter; step down; Uin:2.375÷5.5V; Uout:0.8÷5V; 8A Linear Technology 直流 - 直流开关调节器, 降压, 4A, 2.375 → 5.5 V输入, 0.8 → 5 V输出, 1.25 MHz, 66针 LGA封装
$102.0000
Details

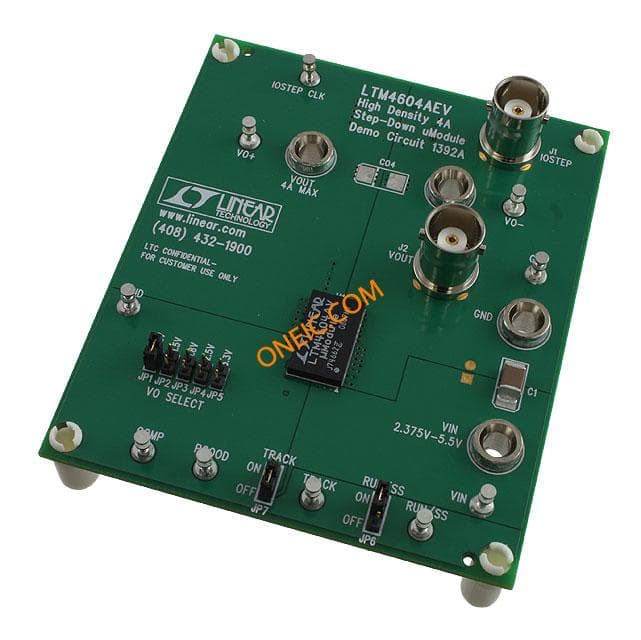

DC1392A
Analog Devices, Inc.
BOARD DEMO LTM4604A EVAL BOARD, LTM4604A 4A STEP-DOWN REGULATOR
$692.9200
Details
