LTC2600CUFD#PBF
| Manufacturer | |
| Description | DAC 8-CH 16-bit 20-Pin QFN EP IC DAC OCTAL R-R 16BIT 20-QFN IC, 16BIT DAC, OCTAL, V O/P, 20QFN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 73 | Standard Package Name | QFN |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Rad Hardened | No | ||
Electrical
| Interface | Serial (3-Wire, SPI, Microwire) | Input Type | :Serial |
| Resolution | 16bit | Output Type | Voltage |
| INL/DNL (LSB) | ±64LSB | Power - Input | Single |
| Settling Time | 10µs | Converter Type | General Purpose |
| Data Interface | Serial | Number of Bits | 16 |
| Number of DAC's | 8 | Current - Output | :2.6mA |
| Voltage - Supply | Not Required V | Power Supply Type | Single |
| Resolution (Bits) | :16bit | Number of Channels | 8 |
| Voltage Supply Source | Single Supply | Number of Outputs and Type | 8 Voltage, Unipolar |
| Sampling Rate (Per Second) | * | Voltage - Supply Span (Typ) | Not Required V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Weight | 0.0001 | Packaging | Tube |
| Lead Style | No Lead | Termination | :SMD |
| Mounting Type | Surface Mount | Number of Pins | :20 |
| Package / Case | 20-WFQFN Exposed Pad | Package Cooled | QFN EP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | QFN EP |
| Number of Positions | 20 | Supplier Device Package | 20-QFN (5x4) |
Product Info
| Base Unit | :2600 | Number of A/D Converters | 8 |
Environmental
| Operating Temperature | 0°C ~ 70°C | Operating Temperature - Junction | 70C |
Documents & Media
Online Document
Similar Parts
2272
3M Electronic Specialty
Anti-Static Control Products Economy Strap w/Cord WRIST STRAP & CORD - HIGH LAND Wrist Strap; Fabric Wrist; 5 ft.; Blue; 9 in. (Max.); UL Listed Adjustable Wrist Straps, Grounding Cords And Wrist Strap Tester STATIC PROTECTION WRIST STRAP GROUNDER WRISTBAND & CORD, 1.5M WristStrap;FabricWrist;5ft;Blue;9in.(Max.);Adjustable
$51.2040
Details
LTC2600CUFD#PBF
Analog Devices, Inc.
DAC 8-CH 16-bit 20-Pin QFN EP IC DAC OCTAL R-R 16BIT 20-QFN IC, 16BIT DAC, OCTAL, V O/P, 20QFN
Details

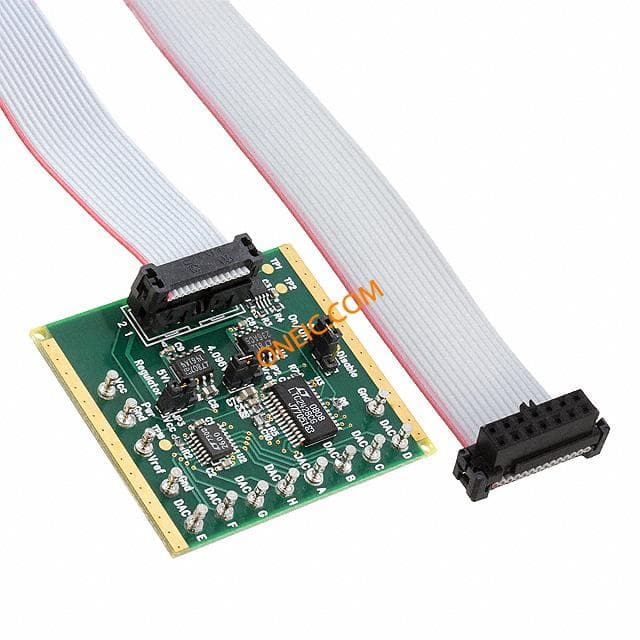

DC579A
