LT3751EFE#PBF
| Manufacturer | |
| Description | Capacitor Charger Controller 20-Pin TSSOP EP IC CTRLR CAP CHRGR 20-TSSOP Linear Technology 电容充电器控制器, 24 V 反激式, 20针 TSSOP封装 |
| Category |
Business
| Other Names | LT3751EFEPBF | Standard Package | 74 |
| Standard Package Name | TSSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Current - Output | 5.5mA | Voltage - Supply | 4.75 V ~ 24 V |
| Number of Outputs | 1 | Common Mode Transient Immunity (Min) | Automotive |
Mechanical
| Width | 4.5mm | Height | 1.05mm |
| Length | 6.6mm | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Number of Pins | 20 | Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Package Cooled | TSSOP EP | Length - Overall | 6.6(Max) |
| Package Quantity | TSSOP EP | Size / Dimension | 6.6 x 4.5 x 1.05mm |
| Number of Positions | 20 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 20-TSSOP-EP | ||
Product Info
| Function | Y | Applications | Photoflash Capacitor Charger |
| Controller Type | 反激式控制器 | Printed Circuit Board | 20 |
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
SI7820DN-T1-GE3
Vishay / Siliconix
MOSFET 200V 2.6A 3.8W 240mohm @ 10V Trans MOSFET N-CH 200V 1.7A 8-Pin PowerPAK 1212 T/R MOSFET N-CH 200V 1.7A 1212-8 N CH MOSFET, 200V, 2.6A, POWERPAK
LT3751EFE#PBF
Analog Devices, Inc.
Capacitor Charger Controller 20-Pin TSSOP EP IC CTRLR CAP CHRGR 20-TSSOP Linear Technology 电容充电器控制器, 24 V 反激式, 20针 TSSOP封装
744720
Wurth Electronics Inc
KIT DESIGN FOR LINEAR TECH Wurth Elektronik Power Inductor Inductor Design Kit, 239 Pieces DESIGN-KIT SMD-POWER CHOKES Wurth Elektronik 239件 电感器设计套件, 套件包含功率电感器

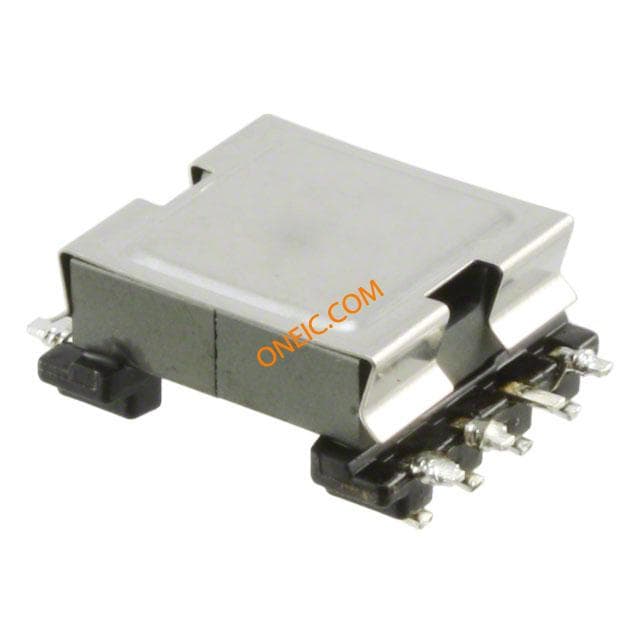

750032050
Wurth Electronics Inc
TRANS POWR FOR LT3751/LT3750 SMD Transformers Audio & Signal WE-FB Flyback XFMR 10.0uH +-10%

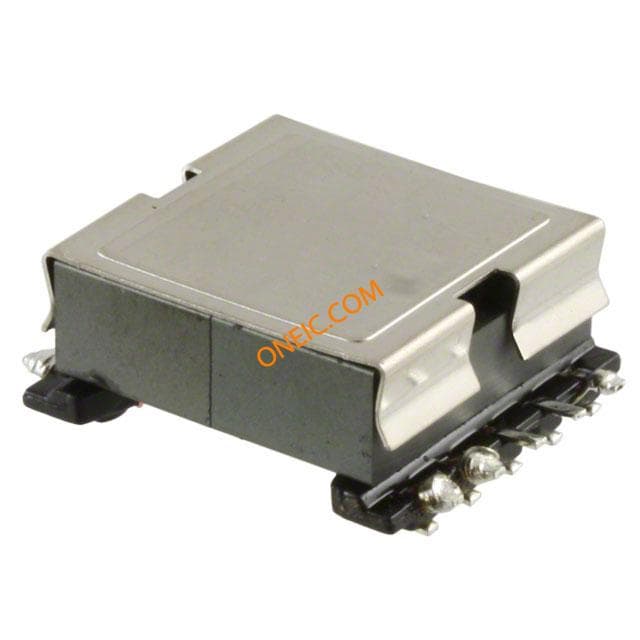

750032052
Wurth Electronics Inc
TRANS POWER FOR LT3750 SMD FLYBACK TRANSFORMER, 10UH
750310349
Wurth Electronics Inc
TRANS POWER FOR LT3751 SMD Transformers Audio & Signal WE-FB Flyback XFMR 5.0uH +-10%

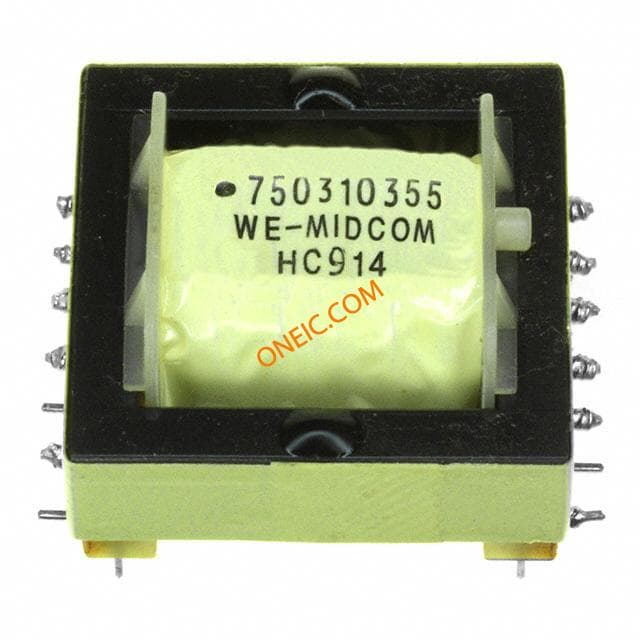

750310355
Wurth Electronics Inc
TRANS POWER FOR LT3751 SMD Transformers Audio & Signal WE-FB Flyback XFMR 2.5uH +-10%

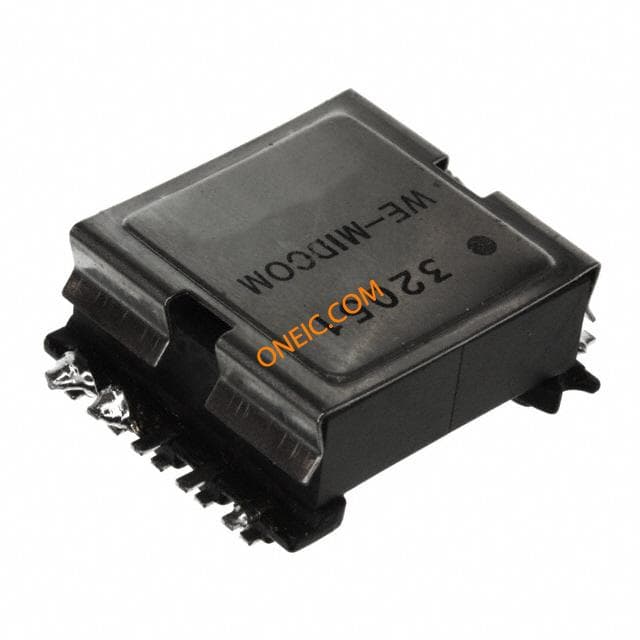

750032051
