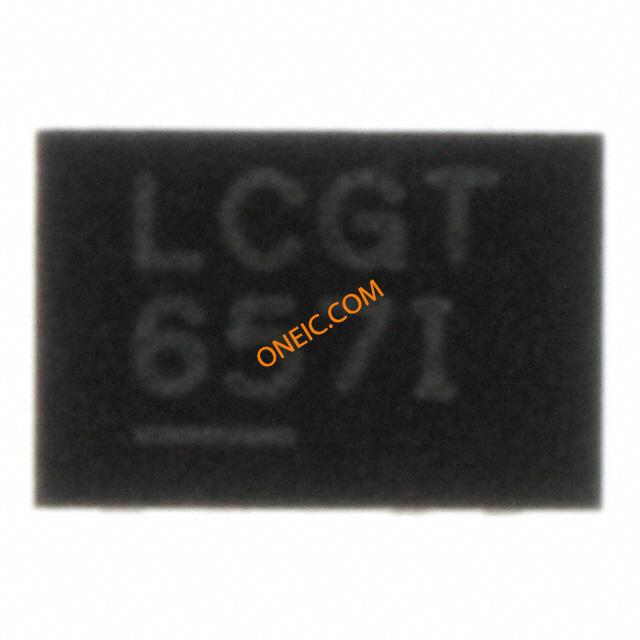

LT3497EDDB#TRMPBF
| Manufacturer | |
| Description | LED DRVR 8Segment 3.3V/5V/9V 10-Pin DFN EP T/R IC LED DRIVR WHITE BCKLGT 10-DFN IC, WHITE LED DRIVER, 10DFN |
| Category |
Business
| Other Names | LT3497EDDB#TRMPBFCT | Standard Package | 500 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Dimming | :PWM | Frequency | 1.8MHz ~ 2.8MHz |
| Display Type | :LED | Voltage Rating | :35V |
| Current - Output | :200mA | Current - Supply | 8500 |
| Voltage - Supply | 2.5 V ~ 10 V | Number of Outputs | 2 |
| Frequency - Switching | :2.3MHz | Voltage - Input (Min) | 35V |
| Voltage - Supply (Min) | 10 | Common Mode Transient Immunity (Min) | Extended |
| Voltage - Continuous Operating (Max) (MCOV) | :10V | ||
Mechanical
| Weight | 0.0001 | Packaging | Tape and Reel |
| Case Color | :DFN | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Number of Pins | :10 | Package / Case | 10-WFDFN Exposed Pad |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | DFN EP |
| Number of Positions | 10 | Supplier Device Package | 10-DFN (3x2) |
Product Info
| Type | White LED | Topology | PWM, Step-Up (Boost) |
| Base Unit | :3497 | Number of Segments | 8 |
| Internal Connection | Yes | Application Specifics | :Cell Phones, PDA |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
