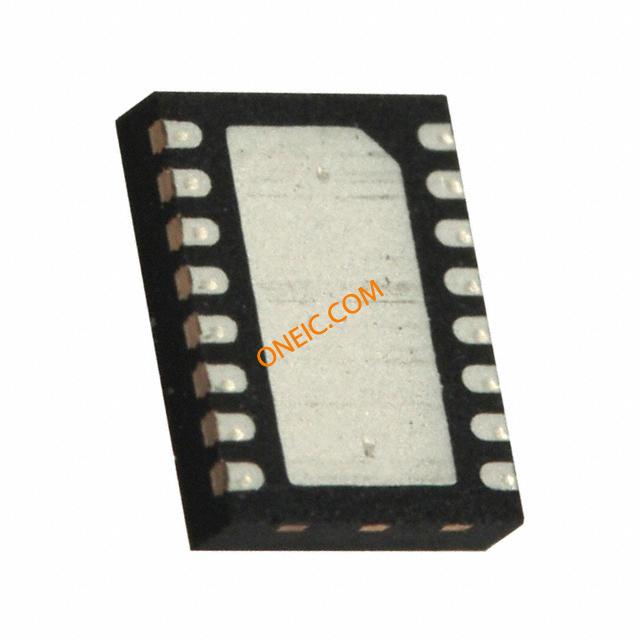

LT3029EDE#PBF
| Manufacturer | |
| Description | LDO Regulator Pos 1.215V to 19.5V 0.5A 16-Pin DFN EP IC REG LDO ADJ 0.5A 16DFN IC, LDO, ADJ, 500MA, DUAL, 16DFN Linear Technology 双 低噪声低压降稳压器, 可调整的输出, 500mA, 1.21 → 19.5 V输出, 16针 DFN封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | LT3029EDEPBF | Standard Package | 91 |
| Standard Package Name | DFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Output Type | Adjustable | Regulator Type | Linear |
| Voltage Rating | 1.215 to 19.5 V | Line Regulation | 5mV |
| Load Regulation | 6mV | Current - Output | 500mA |
| Voltage - Supply | 0.3V @ 500mA | Number of Outputs | 2 |
| Current - Output 1 | :500mA | Current - Output 2 | :500mA |
| Regulator Topology | Positive Adjustable | Number of Regulators | 2 |
| Voltage - Input (Min) | 1.215 V ~ 19.5 V | DC Voltage - Input (Min) | 1.8 V |
| Current - Quiescent (Max) | 520mA | Voltage - Output 2 (Adj Range) | :19.5V |
| Common Mode Transient Immunity (Min) | Extended | Voltage - Continuous Operating (Max) (MCOV) | :20V |
Mechanical
| Weight | 0.0002 | Packaging | Tube |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Number of Pins | :16 | Package / Case | 16-WFDFN Exposed Pad |
| Package Cooled | DFN EP | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | DFN EP | Number of Positions | 16 |
| Supplier Device Package | 16-DFN (4x3) | ||
Product Info
| Type | LDO | Features | Current Limit|Reverse Battery Pro... |
| Polarity | Positive | Topology | LDO |
| Base Unit | :3029 | Other Specifications | :1.215V to 19.5V |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
