点击放大查看

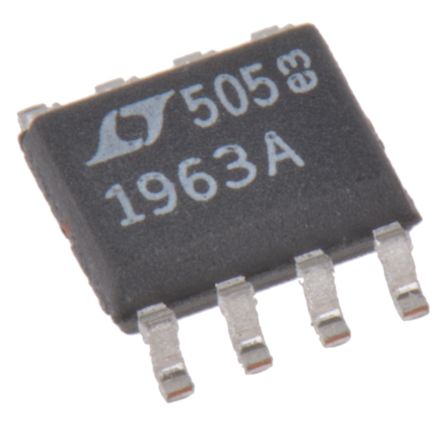

LT1963AES8#PBF
| Manufacturer | |
| Description | IC LDO REG LOW NOISE 1.5A 8-SOIC IC REG LDO ADJ 1.5A 8SOIC LDO Regulator Pos 1.21V to 20V 1.5A 8-Pin SOIC N Linear Technology , LDO 调节器, 可调整的输出, 1.5A, 1.21 → 20 V输出, 8针 SOIC封装 |
| Category |
Business
| Other Names | LT1963AES8PBF | Standard Package | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Output Type | Adjustable | Regulator Type | Linear |
| Voltage Rating | 1.21 to 20 V | Line Regulation | 5mV |
| Load Regulation | 8mV | Current - Output | 1.5A |
| Voltage - Supply | 0.34V @ 1.5A | Number of Outputs | Single |
| Voltage Reference | 1.21V | Regulator Topology | Positive Adjustable |
| Current Rating (Max) | 1.5A | Number of Regulators | 1 |
| Voltage - Input (Min) | 1.21 V ~ 20 V | DC Voltage - Input (Min) | 1.9 V |
| Current - Quiescent (Max) | 1.6A | Voltage Regulation - Load | 5 mV |
Mechanical
| Width | 3.988mm | Height | 1.498mm |
| Length | 5mm | Packaging | Tube |
| Mounting Type | Surface Mount | Number of Pins | 8 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Package Cooled | SOIC N |
| Package Quantity | SOIC | Size / Dimension | 5.004 x 3.988 x 1.498mm |
| Number of Positions | 8 | Supplier Device Package | 8-SOIC |
Product Info
| Function | Y | Polarity | Positive |
| Topology | LDO | Other Specifications | 是 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
