点击放大查看

LT1021CCN8-5#PBF

Manufacturer	Analog Devices, Inc.
Description	V-Ref Precision 5V 10mA 8-Pin PDIP N IC VREF SERIES BURIED ZNR 8-PDIP LT1021CCN8-5#PBF, Precision Voltage Reference 4.998 to 5.003V, 0.05% 10mA 40V Max. 8-Pin PDIP N V REF, PRECISION, 5V, 0.02%, 8DIP IC, SERIES/SHUNT V-REF, 5V, 2.5mV, 8-DIP IC VREF SERIES 5V 8PDIP LT1021CCN8-5#PBF Voltage reference source; 5V; DIP8 Linear Technology Fixed 5V 电压参考, ±0.05 %精确度, 10mA, 40 V输入, 8针 PDIP封装
Category	Power SolutionsVoltage ReferenceSeries Voltage References

对参数有疑问？问 AI 助手

Business

Other Names	LT1021CCN85PBF	Standard Package	50
Standard Package Name	PDIP

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85423990
Rad Hardened	No

Electrical

Tolerance	±0.5%	Reference Type	Precision
Voltage Rating	40 V	Line Regulation	12ppm/V
Load Regulation	100ppm/mA	Current - Output	10mA
Voltage - Supply	:0.05%	Voltage Reference	:5V
Number of Channels	1	Voltage - Input (Min)	5V
Voltage - Output (Max)	5.003 V	Current - Quiescent (Iq)	1.5mA
Accuracy - Highest (Lowest)	0.05%	Voltage - Output (Min/Fixed)	4.998 V
Common Mode Transient Immunity (Min)	Commercial	Voltage - Continuous Operating (Max) (MCOV)	:40V

Mechanical

Width	6.48mm	Height	3.3mm
Length	10.16mm	Weight	0.000833
Packaging	Tube	Lead Style	Through Hole
Mounting Type	Through Hole	Number of Pins	:8
Package / Case	8-DIP (0.300", 7.62mm)	Package Cooled	PDIP N
Material Finish	:-	Package Quantity	PDIP N
Size / Dimension	10.16 x 6.48 x 3.3mm	Number of Positions	8
Supplier Device Package	8-PDIP

Product Info

Spg	10	Type	voltage reference source
Topology	Series	Programmable	Precision
Number of Units	1

Environmental

Operating Temperature

0°C ~ 70°C

Temperature Coefficient

20ppm/°C

Documents & Media

Online Document

LT1021

Similar Parts

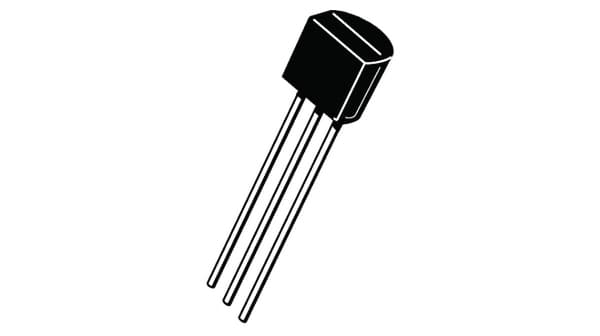

2N3906
