T 3507 000
| Manufacturer | |
| Description | Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port CONN CIR RCPT FMALE 8POS PNL MNT Circular DIN Connectors 8P DIN PANEL FEMALE connector, circular din, female panel recept, front mt, 8din silver-pltd solder cont Device bushing C091A 8-pin Poles=8, T 3507 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3507 T U | Product Category | Circular DIN Connectors |
| Standard Package | Bulk, Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 100V | Number of Poles | 8 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 20-26 | Orientation | Keyed |
| Termination | Solder | Contact Type | Socket |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | Panel |
| Package / Case | Metal | Connector Usage | Threaded |
| Locking Feature | M16 x 0.75 screw locking | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Dielectric Material | Thermoplastic |
| Number of Positions | 8 | Shell Size - Insert | DIN (270 Degree) |
| 1st Connector Gender | Female | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Circular | Design | Panel-mount female receptacle |
| Gender | RCP | Series | C 091 A |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | Connection Method | 0.5 |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
T 3504 001
amphenol
Conn Circular M 8 POS Solder ST Cable Mount 8 Terminal 1 Port CONN CIR MALE 8POS CBL MNT Circular DIN Connectors 8P DIN CABLE PLUG CIRCULAR CONNECTOR, PLUG, 8POS, CABLE connector, circular din, str male cable connector, 8din silver-plt solder contact Cable connector, C091A 8-pin Poles=8, T 3504 001, Amphenol
T 3504 002
amphenol
Conn Circular M 8 POS Solder ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS CABLE PIN Circular DIN Connectors STRAIGHT MALE 8P 6-8MM SLVR PLT
T 3504 551
amphenol
Conn Circular M 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CONN PLUG 8POS CABLE PIN CRIMP
T 3504 005
Amphenol Tuchel
Circular DIN Connectors 8 Pin Male;R/A Cable Mount CONN MALE 8POS CABLE MNT R/A CONNECTOR, CIRCULAR, PLUG, 8POS, CABLE CONN MALE 8POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 8din silver plt solder contact Connector: circular; Series: C091A; male; plug; silver plated; IP40

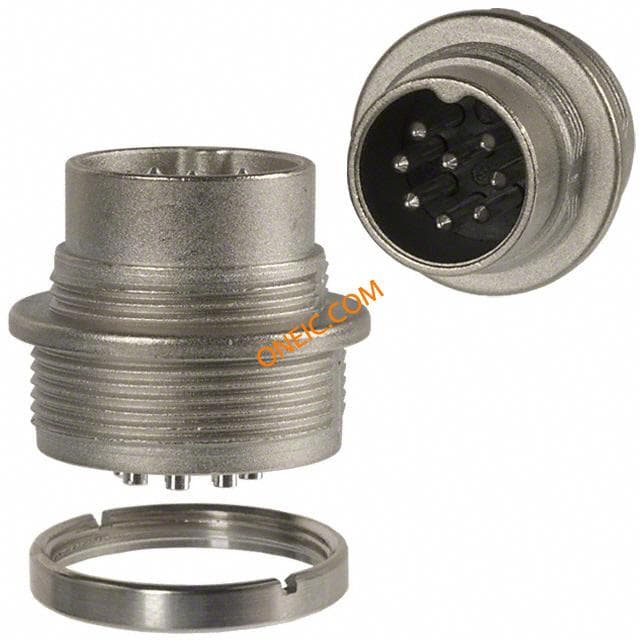

T 3506 000
