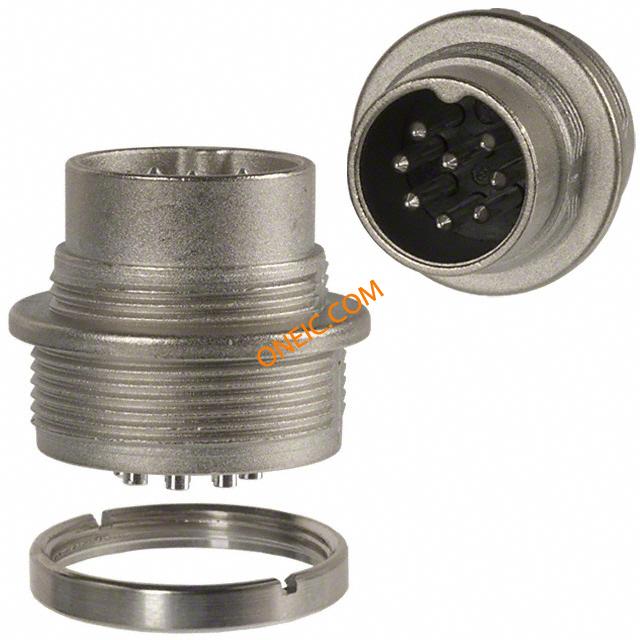

T 3506 000
| Manufacturer | |
| Description | Circular DIN Connectors 8P DIN PANEL MALE CONN CIR RCPT MALE 8POS PNL MNT CONNECTOR, CIRCULAR, RCPT, 8POS, PANEL Appliance plug, C091A 8-pin Poles=8, T 3506 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3506 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 100V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0 | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder Cup |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Mounting Style | Panel |
| Material - Body | :Metal | Termination Style | Crimp / Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 8 |
| Number of Positions | 8 | Shell Size - Insert | DIN (270 Degree) |
| Shell Material, Finish | Die Cast, Nickel Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Receptacle | Series | :C091A |
| Features | Shielded | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
