点击放大查看

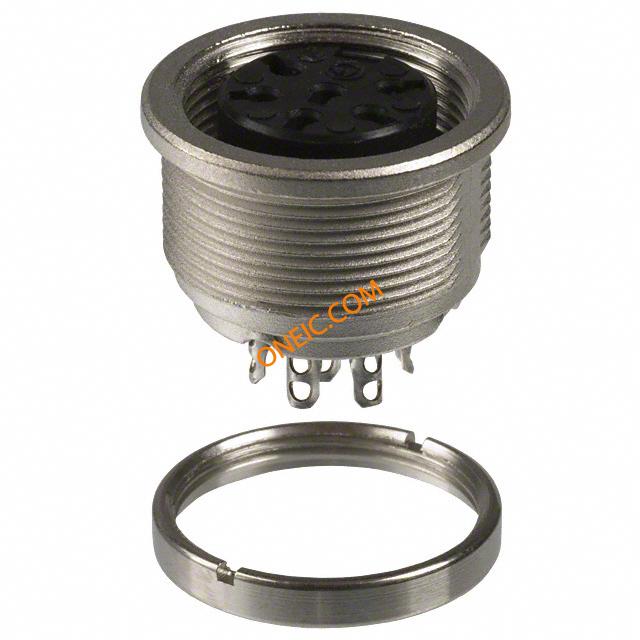

T 3403 000
| Manufacturer | |
| Description | Conn Circular F 6 POS Solder ST Panel Mount 6 Terminal 1 Port Circular DIN Connectors 6 DIN PANEL FEMALE CONN CIR RCPT FMALE 6POS PNL MNT connector, circular din, female panel recept, front mt, 6din silver-pltd solder cont Device bushing C091A 6-pin Poles=6, T 3403 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3403 T U | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | UL Recognized/IEC | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 300 V | Number of Poles | 6 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Diameter | 20 | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | 6Signal | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Nickel |
| Mounting Style | Panel | Package / Case | Metal |
| Connector Usage | Threaded | Locking Feature | M16 x 0.75 screw locking |
| Contact Material | CuZn+Ag | Housing Material | Die Cast |
| Length - Overall | 17.5 | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Dielectric Material | Thermoplastic |
| Number of Positions | 6 | Shell Size - Insert | DIN (240 Degree) |
| 1st Connector Gender | Female | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Type | Circular | Design | Panel-mount female receptacle |
| Gender | RCP | Series | C 091 A |
| Features | Shielded | Manufacturer | C091-A Series |
| Product Type | Connectors | Connection Method | 0.5 |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
