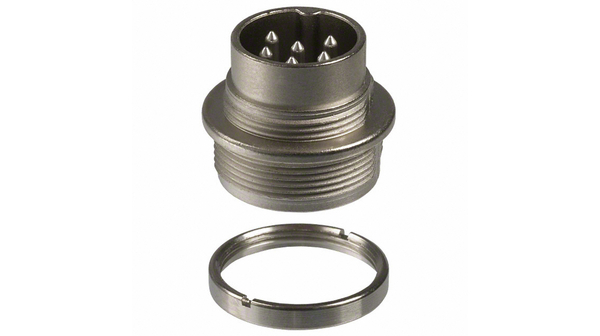

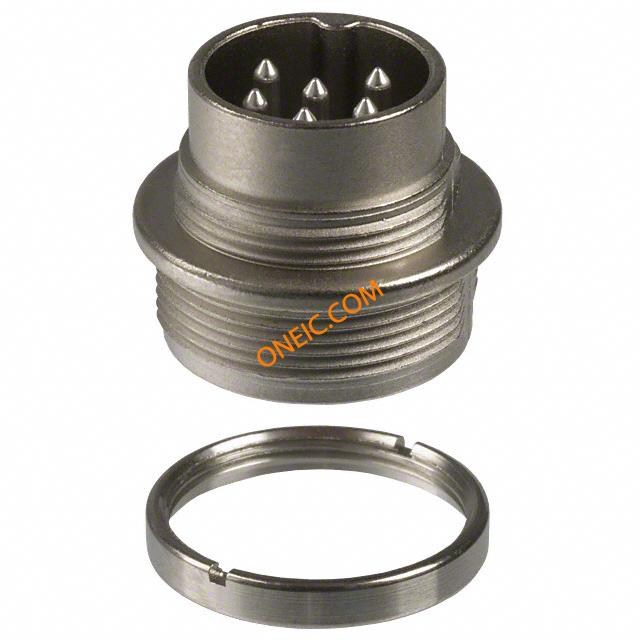

T 3402 000
| Manufacturer | |
| Description | Circular DIN Connectors 6P DIN PANEL MALE CONN CIR RCPT MALE 6POS PNL MNT Appliance plug, C091A 6-pin Poles=6, T 3402 000, Amphenol |
| Category |
Business
| Part # Aliases | 000 3402 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 300V | Number of Poles | 6 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder Cup | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Panel | Locking Feature | M16 x 0.75 screw locking |
| Contact Material | CuZn+Ag | Housing Material | Brass (CuZn) |
| Termination Style | Crimp / Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | DIN (240 Degree) | 1st Connector Gender | Male |
| Shell Material, Finish | Die Cast, Nickel Plated | ||
Product Info
| Design | Panel-mount male receptacle | Series | C 091 A |
| Features | Shielded | Product Type | Connectors |
| Connection Method | 0.5 | RF Family/Standard | C091A |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
