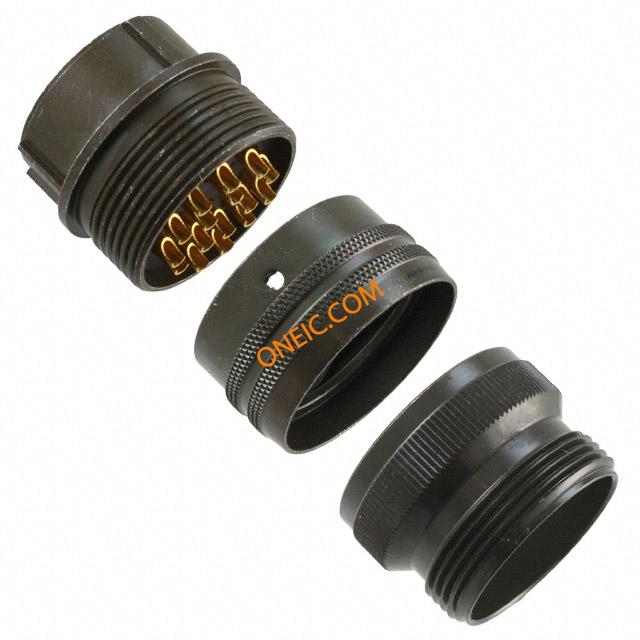

PT06A-20-16S
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular SKT 16 POS Solder ST Cable Mount 16 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts CONN PLUG 16 POS STRAIGHT W/SCKT Circular MIL Spec Connector 16P Size 20 Straight Socket Plug CIRCULAR CONNECTOR PLUG SIZE 20, 16POS, CABLE CONNECTOR, STRAIGHT PLUG, CLASS A, SIZE 20, 16 #16 SOLDER SOCKET CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06A2016S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Tariff No | 85366930 | Approval Agency Marking | UL Recognized |
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Shell Size | 20 | Wire Gauge | 16 |
| Orientation | N (Normal) | Shell Style | straight plug |
| Termination | Solder | Contact Size | 20 |
| Contact Type | socket contacts | Mounting Type | Cable Mount |
| Shell Plating | Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Material - Body | :Aluminium |
| Housing Material | Aluminum | Primary Material | 26482 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Bayonet | Number of Contacts | 16 |
| Dielectric Material | Neoprene | Number of Positions | 16 |
| Shell Size - Insert | 20-16 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 16#16 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | MIL-C-26482 Circular | Class | A |
| Gender | PL | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Plugs | Service Class | general duty back shell |
| Application Specifics | Commercial | ||
