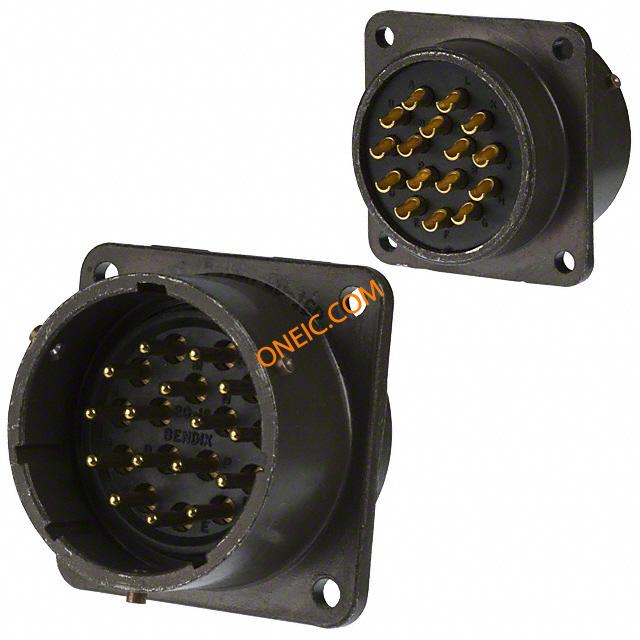

PT02A-20-16P
| Manufacturer | |
| Description | Conn MIL-C-26482 Circular PIN 16 POS Solder ST Box Mount 16 Terminal 1 Port MIL-C-26482 Series 1 Connector, Solder Contacts Circular MIL Spec Connector 16P Sz 20 Box Mount Pin Receptacle CONN RECEPT 16POS W/PINS SOLDER CONNECTOR, BOX MOUNTING RECEPTACLE, CLASSA, SIZE 20, 16 #16 SOLDER PIN CONTACT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | Bulk |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 20 |
| Wire Gauge | 16-20 | Orientation | N (Normal) |
| Shell Style | box mount receptacle | Termination | Solder |
| Contact Type | pin contacts | Mounting Type | Box Mount |
| Shell Plating | Chromate over Cadmium, Olive Drab | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | normal (no rotation) position | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 16 | Dielectric Material | Neoprene |
| Number of Positions | 16 | Shell Size - Insert | 20-16 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 16#16 | ||
Product Info
| Type | MIL-C-26482 Circular | Class | A |
| Gender | RCP | Series | PT |
| Features | 5 Key/Keyway Polarization | Manufacturer | PT Series |
| Product Type | Receptacles | Service Class | general duty back shell |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
