D38999/26WD35SN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 37POS STRAIGHT W/SCKT Circular MIL Spec Connector TV-R ; ALUMINUM CONNECTOR, CIRCULAR, SIZE 15, 37WAY CONNECTOR ((NW)) CIRCULAR CONNECTOR, STR PLUG, SZ D35, 37POS, CABLE FEMALE 37 POSITION AL PLUG Cable socket 15-35 37P, D38999/26WD35SN, Amphenol Amphenol D38999 系列 37路 自由悬挂 连接器 快速联接螺纹 插头 ,母触芯, 外壳尺寸15, MIL-DTL-38999 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shell Size | 15 | Orientation | N (Normal) |
| Shell Style | straight plug | Termination | Crimp |
| Weight (g): | 43.08800 | Contact Type | socket contacts |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Connector Type | MIL-DTL-38999 Series III Connector | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Wire |
| Package / Case | :Straight Plug | Shell Material | Aluminum |
| Insertion Angle | 15-35 | Material - Body | :Aluminium |
| Shell Size, MIL | D | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Self Locking | Number of Contacts | Yes |
| Contact Termination | :Crimp | Number of Positions | 37 |
| Shell Size - Insert | 15-35 | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | PL |
| Series | TV | Features | Shielded |
| Product Type | Plugs | Service Class | olive drab cadmium plate aluminum, 500 hour salt spray, EMI -50dB @ 10GHz, 175°C |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -65°C ~ 200°C |
Documents & Media
Similar Parts
D38999/20WD35PN
amphenol
Conn MIL-DTL-38999 Circular PIN 37 POS Crimp ST Wall Mount 37 Terminal 1 Port CONN RCPT 37POS WALL MNT W/PINS Circular MIL Spec Connector RCPT WALL MNT 37POS SHELL SIZE: 15 CONNECTOR, CIRCULAR, SIZE 15, 37WAY CIRCULAR CONNECTOR, RCPT, SZ D35, 37POS, WALL MALE 37 POSITION AL WM RECEPTACLE Appliance plug with flange 15-35 37P, D38999/20WD35PN, Amphenol Amphenol D38999 系列 37路 壁挂式 连接器 快速联接螺纹 插座 , 公触点, 外壳尺寸15, MIL-DTL-38999

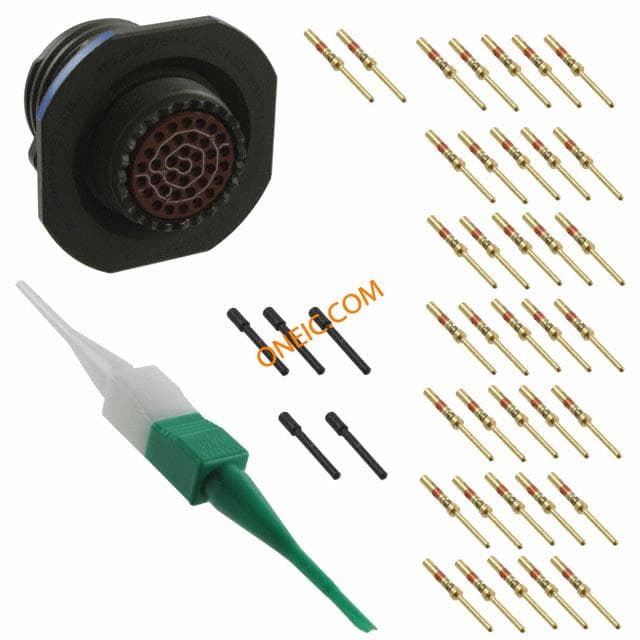

D38999/24WD35PN
