D38999/20WD35PN
| Manufacturer | |
| Description | Conn MIL-DTL-38999 Circular PIN 37 POS Crimp ST Wall Mount 37 Terminal 1 Port CONN RCPT 37POS WALL MNT W/PINS Circular MIL Spec Connector RCPT WALL MNT 37POS SHELL SIZE: 15 CONNECTOR, CIRCULAR, SIZE 15, 37WAY CIRCULAR CONNECTOR, RCPT, SZ D35, 37POS, WALL MALE 37 POSITION AL WM RECEPTACLE Appliance plug with flange 15-35 37P, D38999/20WD35PN, Amphenol Amphenol D38999 系列 37路 壁挂式 连接器 快速联接螺纹 插座 , 公触点, 外壳尺寸15, MIL-DTL-38999 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 88-552004-35P | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-38999 III |
| Tariff No | 85369010 | Approval Agency | :MIL-DTL-38999 Series III |
Electrical
| Insertion Loss | Normal | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 1300 | ||
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Shielding | Yes | Shell Size | 15 |
| Wire Gauge | 28,26,24,22 | Orientation | N (Normal) |
| Shell Style | Wall Mount | Termination | Crimp |
| Contact Size | 37#22D | Contact Type | Pin |
| Housing Color | Olive Drab | Mounting Type | Wall Mount |
| Shell Plating | Olive Drab Cadmium | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Package / Case | :Wall Mount Receptacle |
| Shell Material | Aluminum | Connector Style | Receptacle |
| Insert Material | Hard Dielectric | Insertion Angle | 15-35 |
| Material - Body | :Aluminium | Shell Size, MIL | D |
| Contact Material | Copper Alloy | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Self Locking |
| Number of Contacts | 37 | Contact Termination | :Crimp |
| Number of Positions | 37 | Shell Size - Insert | 15-35 |
| Bushing, Grommet Type | Silicone | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Finish Thickness | 50µin (1.27µm) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | MIL-DTL-38999 Circular | Gender | RCP |
| Series | 38999 | Features | Shielded |
| Product Type | Receptacles | Specifications | MIL-DTL-38999 |
Environmental
| Ratings | M | Mechanical Life | 500 |
| Ingress Protection | Environment Resistant | Operating Temperature | -65°C ~ 200°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts

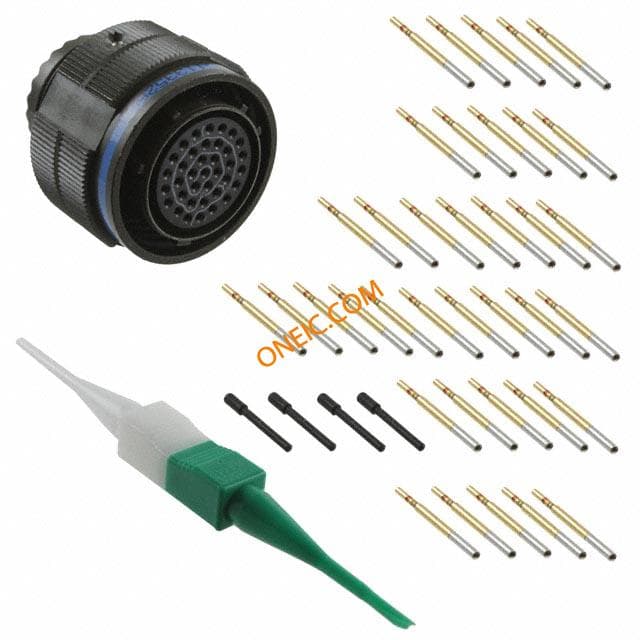

D38999/26WD35SN
amphenol
Conn MIL-DTL-38999 Circular SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port MIL-DTL-38999 Series III Circular Connector CONN PLUG 37POS STRAIGHT W/SCKT Circular MIL Spec Connector TV-R ; ALUMINUM CONNECTOR, CIRCULAR, SIZE 15, 37WAY CONNECTOR ((NW)) CIRCULAR CONNECTOR, STR PLUG, SZ D35, 37POS, CABLE FEMALE 37 POSITION AL PLUG Cable socket 15-35 37P, D38999/26WD35SN, Amphenol Amphenol D38999 系列 37路 自由悬挂 连接器 快速联接螺纹 插头 ,母触芯, 外壳尺寸15, MIL-DTL-38999
$281.7988
Details

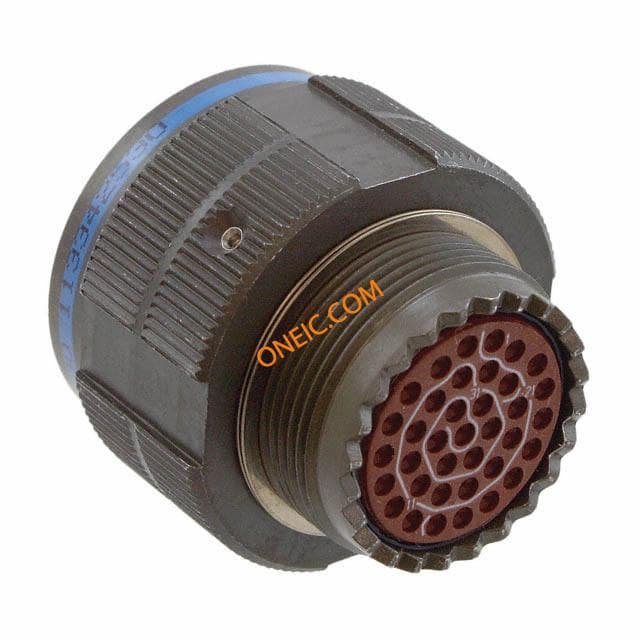

D38999/26WD35SNLC
