97-3106A-28-15P

点击放大查看

97-3106A-28-15P

Manufacturer
Amphenol Corporation
Description

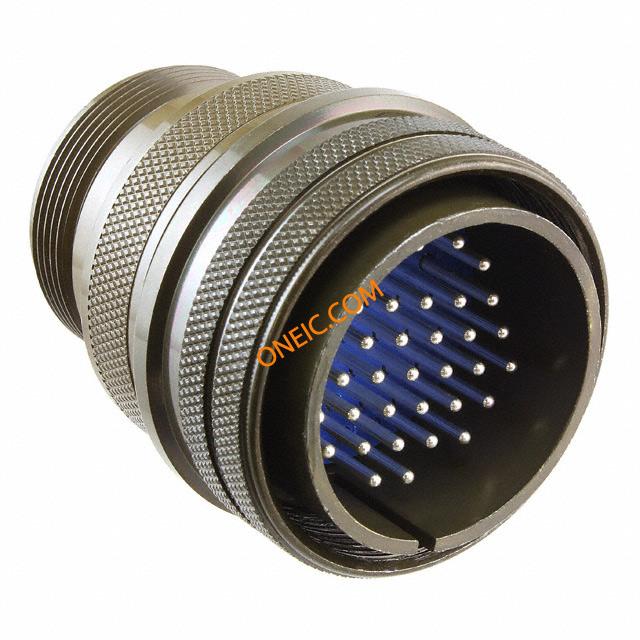

Conn MIL-C-5015 Circular PIN 35 POS Solder ST Cable Mount 35 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN PLUG 35POS STRAIGHT W/PIN connector;metal circ;straight plug;size 28;35 #16 solder pin contact;olive drab Circular MIL Spec Connector 35P Strt Pin Plug Sz 28 Solder CIRCULAR CONNECTOR PLUG SIZE 28, 35POS, CABLE connector, metal circ, straight plug, size28, 35 #16 solder pin contact, olive drab
Category
Connector SolutionsCircular ConnectorsStandard Circular Connectors
对参数有疑问？问 AI 助手

Business

Other Names973106A2815PProduct CategoryCircular MIL Spec Connector
Standard PackageBulk

Compliance

RoHSContains lead / RoHS non-compliantMIL TypeMIL-DTL-5015
Tariff No85369010Approval Agency MarkingUL/CSA

Electrical

Voltage Rating500VAC, 700VDCCurrent Rating (Max)13A

Mechanical

Weight0.113PackagingBulk
Cable ExitSolidShell Size28
Wire Gauge22-16OrientationN (Normal)
Shell Stylestraight plugTerminationSolder
Contact Typepin contactsMounting TypeCable Mount
Shell PlatingOlive Drab Chromate over CadmiumAngle of ThrowStraight
Connector TypeAmphenol 97 Series - Standard Cylindrical Connector - solder typeContact FinishSilver
Fastening TypeThreadedHousing FinishOlive Drab Cadmium
Mounting StyleFree HangingPackage / CaseMetal
Shell Materialsolid backshellConnector UsageThreaded
Insertion Angle28-15Material - Body:Aluminium Alloy
Housing MaterialAluminum AlloyPrimary Material5015 Commercial
Termination StyleSolder1st Contact GenderPin (Male)
Number of Contacts35Dielectric MaterialDiallyl-Phthalate
Number of Positions35Shell Size - Insert28-15
Shell Material, FinishAluminum, Olive Drab Cadmium PlatedContact Layout, Typical35#16
1st Connector Mounting Type:Cable

Product Info

TypeMIL-C-5015 CircularClassA
GenderPLSeries97
Manufacturer97 SeriesProduct TypePlugs
Application SpecificsCommercial

Environmental

Operating Temperature-55°C ~ 125°C
