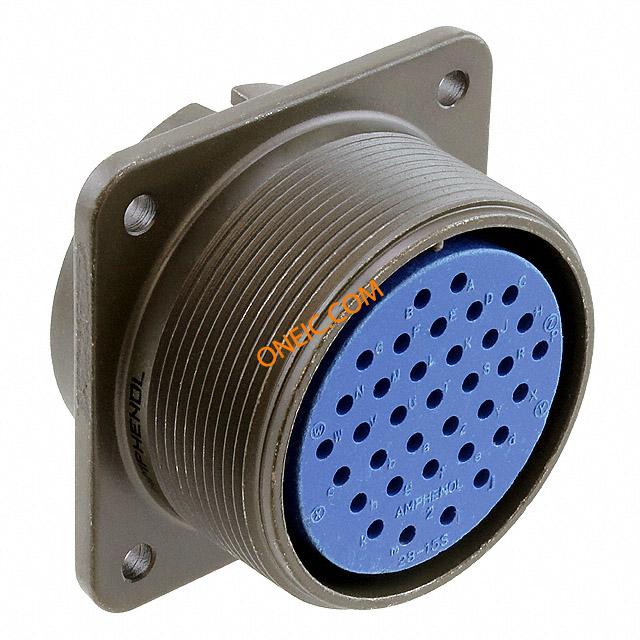

97-3102A-28-15S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 35 POS Solder ST Box Mount 35 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RCPT 35POS BOX MNT W/SKT connector;metal circ;box recept;size 28;35 #16 solder socket contact;olive drab Circular MIL Spec Connector 35P Sz 28 Box Mount Socket Recept Solder CIRCULAR CONN, RCPT, SIZE 28, 35POS, BOX connector, metal circ, box recept, size 28, 35 #16 solder socket contact, olive drab |
| Category |
Business
| Other Names | 973102A2815S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Tariff No | 85366910 | Approval Agency Marking | UL/CSA |
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A |
Mechanical
| Weight | 0.109 | Packaging | Bulk |
| Cable Exit | Solid | Shell Size | 28 |
| Wire Gauge | 16-22 | Orientation | N (Normal) |
| Shell Style | box mount receptable | Termination | Solder |
| Contact Type | socket contacts | Mounting Type | Box Mount |
| Shell Plating | Olive Drab Chromate over Cadmium | Angle of Throw | Straight |
| Connector Type | Amphenol 97 Series - Standard Cylindrical Connector - solder type | Contact Finish | Silver |
| Fastening Type | Threaded | Housing Finish | Olive Drab Cadmium |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | solid backshell | Connector Usage | Threaded |
| Insertion Angle | 28-15 | Material - Body | :Aluminium Alloy |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 35 | Shell Size - Insert | 28-15 |
| Mounting Hole Diameter | 0.147 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 35#16 | 1st Connector Mounting Type | :Box |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
