97-3106A-20-21P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 9 POS Solder ST Cable Mount 9 Terminal 1 Port CONN PLUG 9POS STRGHT PIN SLD connector;metal circ;str plug;size 20;1#12 & 8#16 solder pin contact;olive drab Circular MIL Spec Connector 9P Straight Pin Plug Sz 20 Solder connector, metal circ, str plug, size 20, 1#12 & 8#16 solder pin contact, olive drab |
| Category |
Business
| Other Names | 973106A2021P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 20 | Wire Gauge | #12, #16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Cable Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Wire |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 20-21 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Threaded |
| Number of Contacts | 9 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 9 | Shell Size - Insert | 20-21 |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | Contact Layout, Typical | 1#12, 8#16 |
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | PL | Series | 97 |
| Manufacturer | 97 Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3057-12
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;connector sizes 20;22;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3057 Shell Size 20,22 CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20/22, DIECAST ZINC connector accessory, an3057 cable clamp, connector sizes 20, 22, olive drab finish Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-12-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;an3057 cable clamp;step down;conn size 20;22;olive drab fin Circular MIL Spec Strain Reliefs & Adapters CABLE CLAMP 1/2 CABLE CLAMP, SIZE 20/22, DIECAST ZINC CABLE CLAMP, SIZE 20/22, ZINC ALLOY CABLE CLAMP, SIZE 20, 22 connector accessory, an3057 cable clamp, step down, conn size 20, 22, olive drab fin Amphenol 97 系列 尺寸20, 22 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-1012
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 20, 22 connector accessory;ms3057a cable clamp;connector sizes 20;22;olive drab finish Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 20, 22 CABLE GLAND, SHELL SIZE 20/22 connector accessory, ms3057a cable clamp, connector sizes 20, 22, olive drab finish
97-60-20P
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Plug CONN CAP FOR SIZE 20 PLUG Cable mount plug & skt dust cap,Size 20 Circular MIL Spec Tools, Hardware & Accessories PLUG CAP 20 connector accessory, metal prot cap w/bead chain, for size 20 plugs, olive drab Amphenol 97 系列 MIL-DTL-5015 插座 IP66 防尘盖, 尺寸20P, 橄榄镉表面

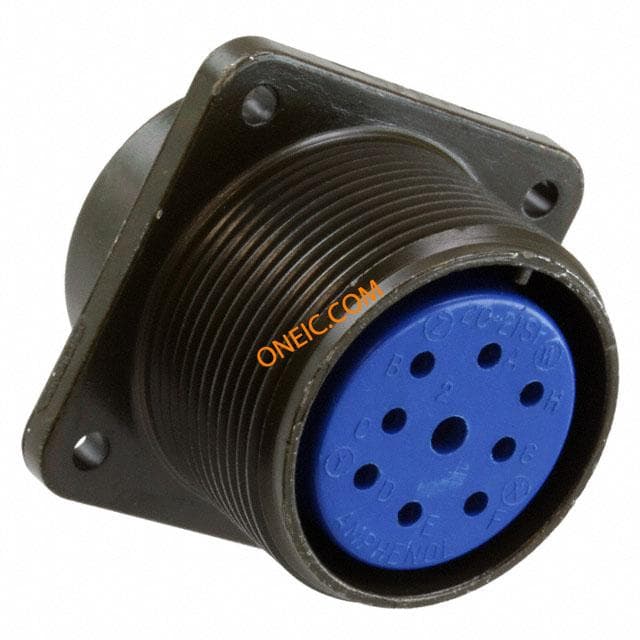

97-3102A-20-21S
