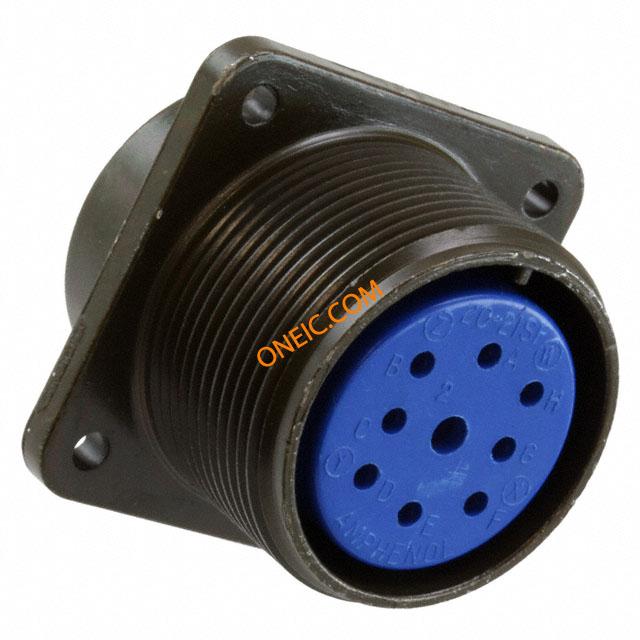

97-3102A-20-21S
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular SKT 9 POS Solder ST Box Mount 9 Terminal 1 Port CONN RCPT 9POS BOX MNT SKT SLD connector;metal circ;box recept;size 20;1#12 & 8#16 solder socket contact;olive Circular MIL Spec Connector 9P Sz 20 Box Mount Socket Recept Solder connector, metal circ, box recept, size 20, 1#12 & 8#16 solder socket contact, olive |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 973102A2021S | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 500VAC, 700VDC | Current Rating (Max) | 13A, 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 20 | Wire Gauge | #12, #16 |
| Orientation | N (Normal) | Shell Style | Potting |
| Termination | Solder | Contact Type | Socket |
| Mounting Type | Box Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 20-2 |
| Contact Material | Copper Alloy | Housing Material | Aluminum Alloy |
| Primary Material | 5015 Commercial | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Threaded |
| Number of Contacts | 1 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 9 | Shell Size - Insert | 20-21 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 1#12, 8#16 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
