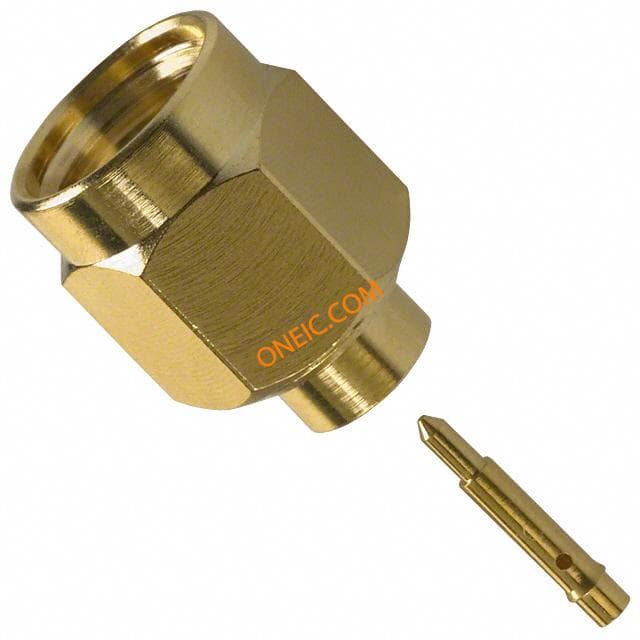

901-9808
| Manufacturer | |
| Description | Conn SMA PL 0Hz to 18GHz 50Ohm ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;solder/plugable;for 0.141 semi-rigid;gold plt RF Connectors / Coaxial Connectors STRT PLG .141S/R GLD connector, rf coaxial, sma str plug, solder/plugable, for 0.141 semi-rigid, gold plt |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Part # Aliases | 713-4203 901-9808 93F7534 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 18 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500 V | Coupling Factor | Threaded |
| Frequency - Max | 18GHz | Insulation Resistance | 5000 MOhms |
Mechanical
| Height | 7.92 | Diameter | 7.92 |
| Packaging | Bulk | Cable Type | 0.141 Semi-Rigid |
| Body Finish | Gold | Cable Group | RG-402 (.141" Semi Rigid) |
| Orientation | Straight | Termination | Solder |
| Body Material | Stainless Steel | Housing Color | Gold |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold Over Nickel |
| Fastening Type | Threaded | Housing Finish | Gold |
| Plating - Body | Gold | Connector Style | SMA |
| Connector Usage | Threaded | Contact Material | Beryllium Copper |
| Housing Material | Stainless Steel | Length - Overall | 11.1 |
| Primary Material | SMA | Termination Style | Cable - Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Tetrafluoroethylene Fluorocarbon |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Straight | ||
Product Info
| Type | SMA | Gender | PL |
| Polarity | Standard | Connection Type | Semi-Rigid Cable |
| RF Family/Standard | SMA | Application Specifics | Commercial |
Environmental
| Mating Cycles | 100 | Operating Temperature | -65°C ~ 165°C |
