132102
| Manufacturer | |
| Description | RF Connectors SMA STRAIGHT PLUG .141 S/R GOLD Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str solder plug w/contact;for 0.141 semi-rigid;50 ohm RF Connectors / Coaxial Connectors SMA STRAIGHT PLUG .141 S/R GOLD RF/COAXIAL, SMA PLUG, STR, 50 OHM, SOLDER connector, rf coaxial, sma str solder plug w/contact, for 0.141 semi-rigid, 50 ohm |
| Category |
Business
| Product | Connectors | Other Names | ACX1176 |
| Part # Aliases | 319-0141 66H7627 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
Electrical
| Frequency | 0 to 18 Hz | Impedance | 50 Ohm |
| Coupling Factor | Threaded | Frequency - Max | 18GHz |
Mechanical
| Depth | 8 mm | Weight | 0.083952 oz |
| Diameter | Not Required mm | Packaging | Bulk |
| Cable Type | RG-402/U, 0.141 Semi-Rigid | Body Finish | Gold |
| Cable Group | RG-402 (.141" Semi Rigid) | Orientation | Straight |
| Termination | Solder | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Gold | Mounting Style | Cable |
| Plating - Body | Gold | Connector Style | SMA |
| Connector Usage | Threaded | Contact Material | Brass |
| Housing Material | Brass | Length - Overall | 11.2 mm |
| Primary Material | SMA | Termination Style | Cable - Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Straight | ||
Product Info
| Type | SMA | Gender | PL |
| Polarity | Standard | Connection Type | Semi-Rigid Cable |
| RF Family/Standard | SMA | Application Specifics | Commercial |
Environmental
| Mating Cycles | 500 | Ingress Protection | Weatherproof |
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
Similar Parts
901-9808
amphenol
Conn SMA PL 0Hz to 18GHz 50Ohm ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;solder/plugable;for 0.141 semi-rigid;gold plt RF Connectors / Coaxial Connectors STRT PLG .141S/R GLD connector, rf coaxial, sma str plug, solder/plugable, for 0.141 semi-rigid, gold plt
132348
amphenol connex
Connector Accessories SMA Female Cap with Chain Brass Gold Finish RF Connectors SMA FEMALE CAP WITH CHAIN CONN FEMALE CAP W/CHAIN SMA RF Connector Accessories SMA FEMALE CAP WITH CHAIN Coaxial/RF; Cap-w/Chain; SMA; Protective; Male; Brass; forSMAFemale; Straight

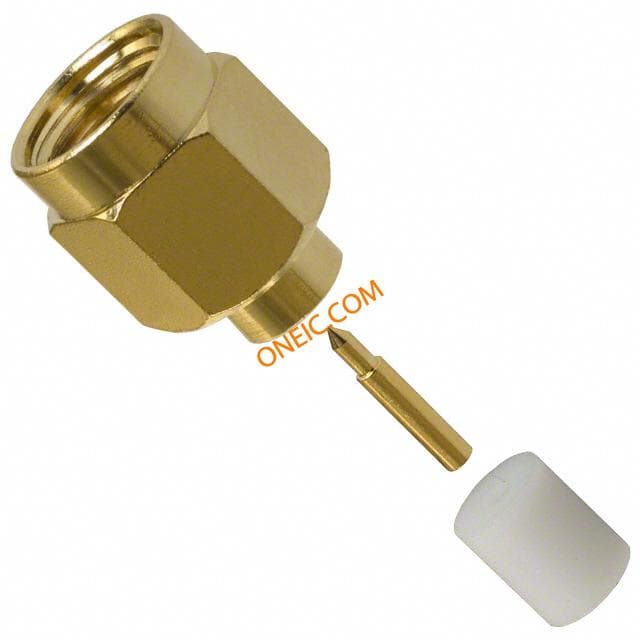

901-9868-RFX
