31-70013
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc str plug;crimp-crimp;for rg179;187 cable;75 ohm-t1 RF Connectors / Coaxial Connectors 75 OHM BNC T1 PLUG RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP BNC PLUG TRUE 75 OHM CRIMP BRAID & CENT COND FOR RG179 BELDEN 9221 |
| Category |
Business
| Product | Connectors | Part # Aliases | 031-70013 16R0624 713-8613 89F2863 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bulk |
Compliance
| RoHS | Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 75 Ohm |
| Coupling Factor | Bayonet | Frequency - Max | 4 GHz |
Mechanical
| Weight | 0.306883 oz | Cable Type | RG-179, RG-187, Belden 9221 |
| Body Finish | Nickel | Orientation | Straight |
| Termination | Crimp | Weight (g): | 11.60000 |
| Body Material | Brass | Mounting Type | Cable Mount |
| Connector Type | :BNC Coaxial | Contact Finish | Gold |
| Contact Material | Brass | Termination Style | Cable - Crimp |
| Contact Termination | Crimp | Supplier Device Package | Straight |
Product Info
| Type | BNC | Gender | PL |
| Series | :- | Polarity | Standard |
| Connection Type | Coaxial Cable | RF Family/Standard | 031-70013 |
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Documents & Media
Similar Parts

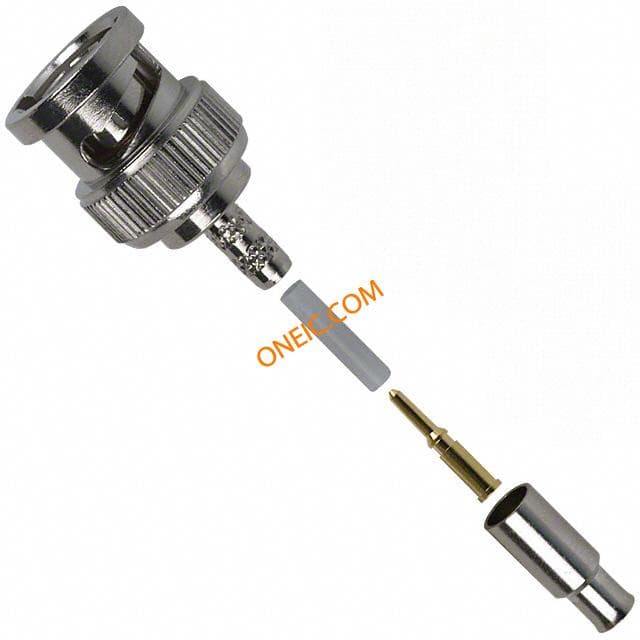

112133
amphenol connex
Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg179;187 cable;75 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RG179 75 OHM BR RF/COAXIAL, BNC, STRAIGHT, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg179, 187 cable, 75 ohm

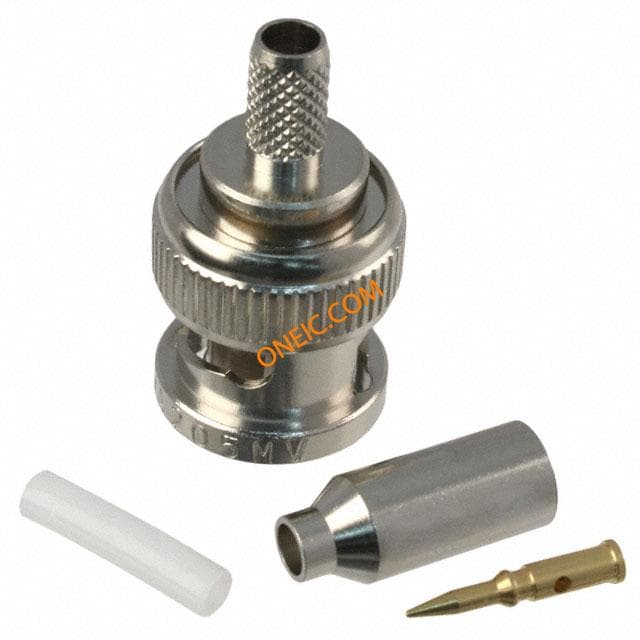

310A205MV
Bomar Interconnect
RF Connectors 50 OHM RG174/179 CONN BNC PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors 50 OHM RG174/179 Conn BNC M 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Conn;RF;BNC;Straight;CablePlug;Crimp;50Ohms;RG/U174,178,196,MiniRGB;3-Pc BNC CBLE CRMP RG174 REINFORCED

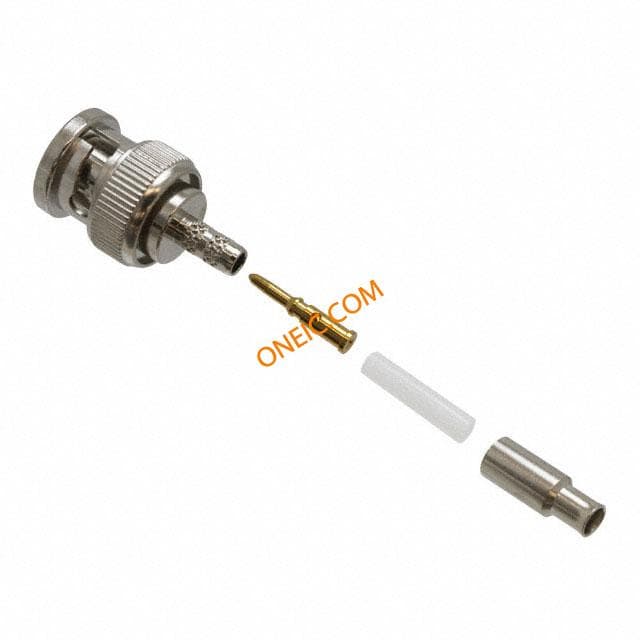

112135
