点击放大查看
112133
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 75 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg179;187 cable;75 ohm RF Connectors / Coaxial Connectors BNC ST CRIMP PLUG RG179 75 OHM BR RF/COAXIAL, BNC, STRAIGHT, 75 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg179, 187 cable, 75 ohm |
| Category |
Business
| Product | Connectors | Other Names | ACX1009 |
| Part # Aliases | 319-0008 37K6613 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
Electrical
| Frequency | 0 to 1 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500V | Coupling Factor | Bayonet |
| Frequency - Max | 4GHz | ||
Mechanical
| Depth | Not Required mm | Height | Not Required mm |
| Weight | 0.325226 oz | Diameter | 14.5 mm |
| Packaging | Bulk | Cable Type | RG-179, RG-187, Belden 9221 |
| Body Finish | Nickel | Cable Group | RG-179, 187 |
| Orientation | Straight | Termination | Crimp |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | Cable | Plating - Body | Nickel |
| Connector Style | BNC | Connector Usage | Bayonet |
| Contact Material | Brass | Housing Material | Brass |
| Length - Overall | 30.2 mm | Primary Material | BNC |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Crimp | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Insulation Material | Delrin | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
Product Info
| Type | BNC | Gender | PL |
| Features | Captivated Contact | Polarity | Standard |
| Connection Type | Coaxial Cable | RF Family/Standard | 112133 |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 40 C to + 155 C |
Documents & Media
Similar Parts
31-70013
amphenol
Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold connector;rf coaxial;bnc str plug;crimp-crimp;for rg179;187 cable;75 ohm-t1 RF Connectors / Coaxial Connectors 75 OHM BNC T1 PLUG RF/COAXIAL, BNC PLUG, STR, 75 OHM, CRIMP BNC PLUG TRUE 75 OHM CRIMP BRAID & CENT COND FOR RG179 BELDEN 9221
112713
amphenol connex
Connector Accessories BNC Female Cap With Chain Brass Nickel Finish CONN BNC FEMALE CAP W/CHAIN connector accessory;rf coaxial;bnc female cap and 100mm chain;for plugs RF Connector Accessories BNC JACK CAP AND CHAIN CAP, BNC COAXIAL CONNECTOR
47-10150
Amphenol Connex
Crimpers CRIMP TOOL W/DIE .178/.128/.068 TOOL CRIMP W/DIES .178/.128/.068 tool;ratcheted hand crimp tool w/die set;cavities: .178;.128;.068 (see notes) Crimp Tool With Die CRIMP TOOL W/DIE SET, RATCHET,COAXIAL CABLE tool, ratcheted hand crimp tool w/die set, cavities: .178, .128, .068 (see notes)
47-20004
amphenol connex
Crimp Die Set Punches & Dies CRIMP DIE .178/ .128/.068 TOOL DIE SET .178/.128/.068 DIE FOR RG174, MINI 59 BNC/TNC

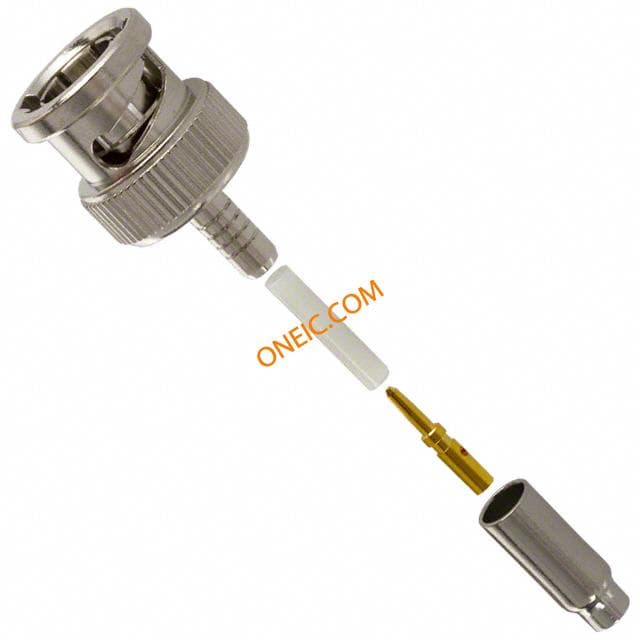

31-71013
