034-1025
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Bag CONN HDBNC PLUG STR 75 OHM CRIMP High density BNC plug for Beldon 1505A PLUG, HD BNC, CRIMP, BELDEN 1505A Conn; RF; HD-BNC; STR; Cable Plug; 75Ohm; forBelden-1505A HDBNC Plug for Belden 1505A |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 75 Ohm |
| Voltage Rating | 170V | Frequency - Max | 4GHz |
Mechanical
| Size | Standard | Weight | 0.05 |
| Diameter | 7.5 mm | Packaging | Bag |
| Cable Type | :Belden 1505A | Body Finish | Nickel |
| Cable Group | Belden 1505A | Termination | Crimp |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | Cable | Plating - Body | Nickel |
| Connector Style | BNC, HD | Contact Material | Phosphor Bronze |
| Length - Overall | 33.97 mm | Primary Material | HD-BNC |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | Straight | 1st Connector Mounting Type | :Cable |
Product Info
| Type | BNC | Gender | PL |
| Series | :HD-BNC | Polarity | Normal |
| Connection Type | Coaxial Cable | RF Family/Standard | 034-1025 |
Environmental
| Operating Temperature | -65°C ~ 165°C | ||
Similar Parts
31-10152-RFX
Amphenol RF
RF Connectors GROUNDING LUG BNC GROUNDING LUG hardware;rf coaxial;grounding lug;bnc inside panel on bulkhead receptacle RF Connector Accessories GROUNDING LUG Connector Accessories BNC Grounding Lug GROUNDING LUG, 75 OHM BNC COAXIAL CONN
034-1023
amphenol
Conn BNC RCP/RCP/RCP 0Hz to 3GHz 75Ohm T Style Gold Bag ADAPTER TEE HDBNC JACK-JACK-JACK High density BNC jack, T adaptor T-ADAPTER, HD BNC, JACK X3 HD-BNC TEE Adapter, Jack ( 3 ) Adapter; RF; HD-BNC Jack-Jack-Jack; Tee; Nickel PLD Brass; 75 Ohm; PTFE HDBNC Jack-Jack-Jack Tree Adapter CONN ADAPT JACK-JACK HDBNC Amphenol T 形 75Ω 射频适配器 ST1 1D5D 05,0 944 1D0, 3GHz, BNC 插座 到 BNC 2 x 插座
034-1025
amphenol
Conn BNC PL 0Hz to 4GHz 75Ohm Crimp ST Cable Mount Gold Bag CONN HDBNC PLUG STR 75 OHM CRIMP High density BNC plug for Beldon 1505A PLUG, HD BNC, CRIMP, BELDEN 1505A Conn; RF; HD-BNC; STR; Cable Plug; 75Ohm; forBelden-1505A HDBNC Plug for Belden 1505A

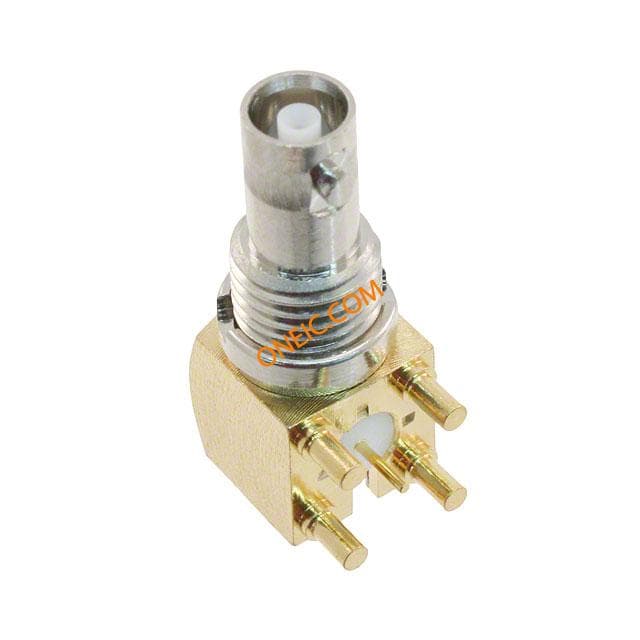

034-1030
