T 3438 501
| Manufacturer | |
| Description | Circular DIN Connectors 7P CABLE RECPT SODR SILV BAYONET CONN RCPT 7POS CABLE SKT SOCKET, FREE, C091B, 7WAY connector, circular din, fem cable conn, solder term, 7 silver plt socket cont, ip40 |
| Category |
Business
| Other Names | T3438501 | Part # Aliases | 3438 501 T U |
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage - Test | :980V | Voltage Rating | 300V |
| Voltage - Supply | DIN | Voltage - Working | :250V |
| Contact Resistance | :5mohm | Dielectric Strength | :980V |
| Current Rating (Max) | 5A | Insulation Resistance | :1012Mohm |
Mechanical
| Color | Red | Weight | 0.006 |
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | :0.5mm² | Orientation | Keyed |
| Termination | Solder Cup | Contact Type | Socket |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 4-6 mm |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | Wire | Package / Case | Metal |
| Connector Usage | Bayonet | Insertion Angle | :- |
| Material - Body | :Metal | Contact Material | :- |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Crimp / Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 7 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 7 |
| Shell Size - Insert | DIN | Shell Material, Finish | Die Cast, Nickel Plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Cable Socket | Gender | :Receptacle |
| Series | :C091B | Features | Shielded, Strain Relief |
| Manufacturer | C091-B Series | Product Type | Connectors |
| RF Family/Standard | C091B | ||
Environmental
| Seal Rating | IP 40 | Mating Cycles | :500 |
| NEMA Frame Size | :IP40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
FH 0300 091
Amphenol Tuchel
Wrenches spanner wrench TOOL WRENCH CABLE SPANNER Cable mount spanner wrench for DIN conn SPANNER WRENCH, C091 tool, circular din, spanner wrench for c091 cable connector Amphenol 连接器扳手
T 3438 501
Amphenol Tuchel
Circular DIN Connectors 7P CABLE RECPT SODR SILV BAYONET CONN RCPT 7POS CABLE SKT SOCKET, FREE, C091B, 7WAY connector, circular din, fem cable conn, solder term, 7 silver plt socket cont, ip40
T 3434 501
Amphenol Tuchel
Circular DIN Connectors 7P CABLE PLUG SODR SILV BAYONET CONN PLUG 7POS CABLE PIN PLUG, FREE, 7WAY connector, circular din, str male cable conn, 7 silver-plated solder contact, ip40 Connector: circular; Series: C091B; male; plug; silver plated; IP40 Cable connector, C091B 7-pin Poles=7, T 3434 501, Amphenol
T 3434 991
Amphenol-Tuchel Electronics
CONN PLUG 7POS CABLE PIN
T 3434 502
Amphenol-Tuchel Electronics
CONN PLUG 7POS CABLE PIN
T 3434 005
Amphenol-Tuchel Electronics
CONN PLUG 7POS CABLE RA PIN MALE CABLE CONNECTOR 7WAY
T 2993 510 9C
Amphenol-Tuchel Electronics
BACK SHELL THERMOPLST BLUE 100PC
T 2993 513 9C
Amphenol-Tuchel Electronics
BACK SHELL THERMOPLST GRN 100PC
T 3434 551
Amphenol-Tuchel Electronics
CONN PLUG 7POS CABLE PIN CRIMP
T 3434 552
Amphenol-Tuchel Electronics
CONN PLUG 7POS CABLE PIN CRIMP

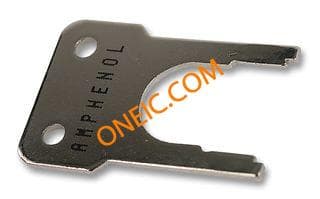

N45 091 0001
