点击放大查看
T 3362 010
| Manufacturer | |
| Description | Circular DIN Connectors C091A ST REC PLG 5P CONN CIR RCPT MALE 5POS PNL MNT Appliance plug, C091A 5-pin DIN Poles=5, T 3362 010, Amphenol |
| Category |
Business
| Part # Aliases | 010 3362 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 100V | Number of Poles | 5 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 40 |
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Termination | Solder Cup | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Locking Feature | M16 x 0.75 screw locking | Contact Material | CuZn+Ag |
| Housing Material | Brass (CuZn) | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | DIN (180 Degree) |
| 1st Connector Gender | Male | Shell Material, Finish | Die Cast, Nickel Plated |
Product Info
| Design | Panel-mount male receptacle | Series | C 091 A |
| Features | Shielded | Product Type | Connectors |
| Connection Method | 0.5 | RF Family/Standard | C091A |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -40°C ~ 100°C |
Documents & Media
Similar Parts
C091 00U000 130 2
Amphenol Tuchel
Circular DIN Connectors CONNECTOR COVER PROTECTIVE CAP PROTECTIVE COVER, FOR MALE RECEPTACLES Protection cover; Series: C091A, C091B, C091D; Mat: metal; -40÷85°C

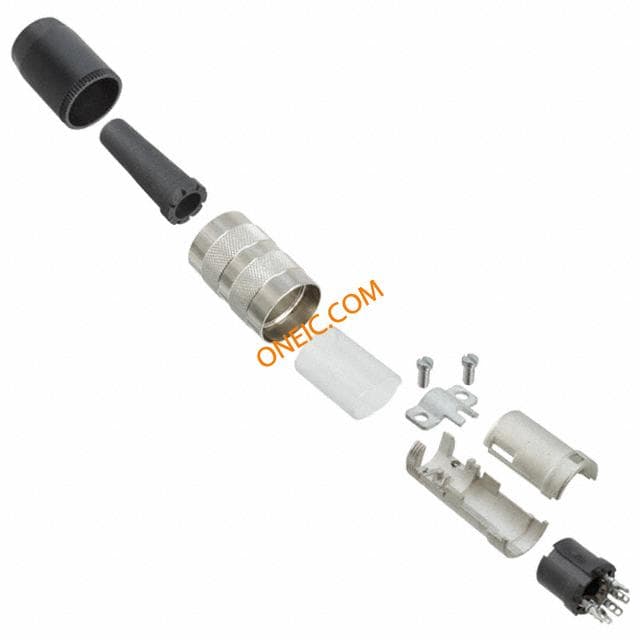

T 3361 010
