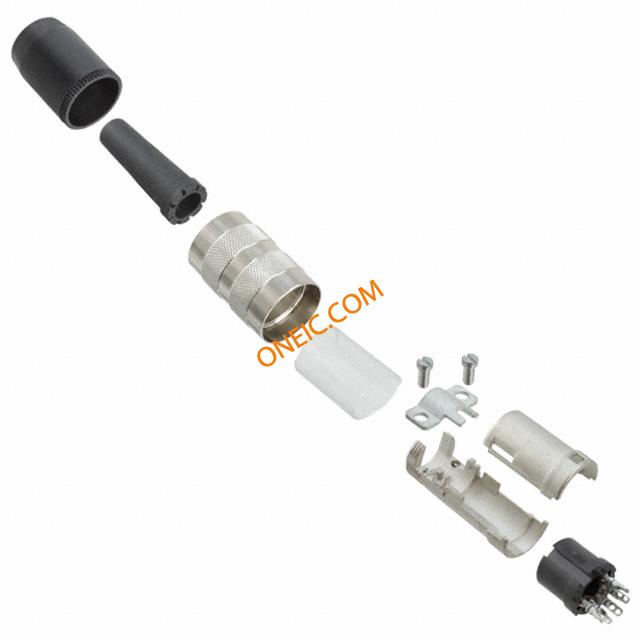

T 3361 010
| Manufacturer | |
| Description | Circular DIN Connectors 5 Pin female; Cable Mount CONN CIR FEMALE 5POS CBL MNT SOCKET, FREE, C091A, 5S WAY connector, circular din, str female cableconn, 5sdin silver-pltd solder cont, ip40 Cable box, C091A 5-pin DIN Poles=5, T 3361 010, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 010 3361 T U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85366990 | Approval Agency Marking | UL Recognized/IEC |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 100V | Voltage - Supply | DIN |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.033 | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder Cup |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 3-6 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Package / Case | Metal |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :- | Contact Material | :- |
| Housing Material | Die Cast | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 5 | Contact Termination | :Solder |
| Dielectric Material | Thermoplastic | Number of Positions | 5 |
| Shell Size - Insert | DIN (180 Degree) | Shell Material, Finish | Die Cast, Nickel Plated |
| Contact Layout, Typical | 5 | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Cable Socket | Gender | :Socket |
| Series | :C091A | Features | Shielded, Strain Relief |
| Manufacturer | C091-A Series | Product Type | Connectors |
| RF Family/Standard | C091A | ||
Environmental
| Seal Rating | IP 40 | Ingress Protection | IP40 |
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
