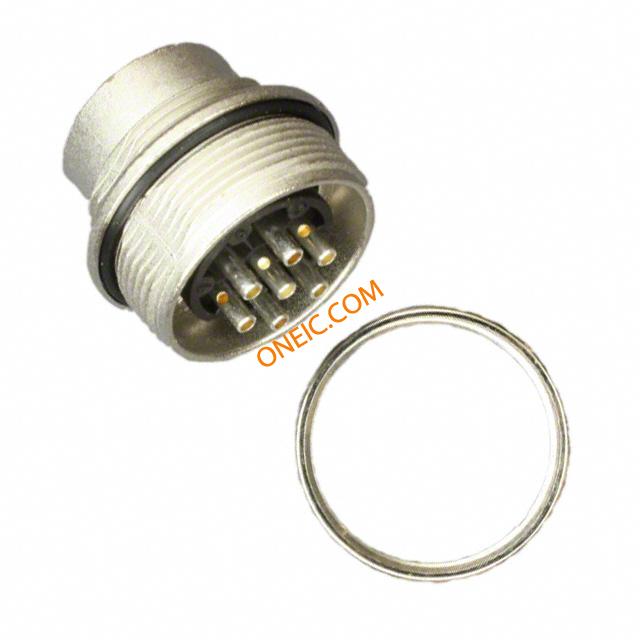

C091 31W007 100 2
| Manufacturer | |
| Description | Circular DIN Connectors Male recpt 7 Pin; Front MT CONN MALE RCPT 7POS FRONT MT C091 31W007 100 2 connector, circular din, male panel recept, front mt, 7 silver pltd pin contact, ip67 Connector: circular; Series: C091D; male; socket; silver plated Appliance plug, C091D 7-pin Poles=7, C091 31W007 100 2, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 100 2 31W007 34B7649 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 250 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Approval Agency Marking | UL Recognized |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 300V | Number of Poles | 7 |
| Voltage - Supply | DIN | Current Rating (Max) | 5A |
| Current Rating - Appliance Inlet | 5 | Voltage - Protection Level (VP) (2416) | IP 67 |
Mechanical
| Weight | 0.01 kg | Packaging | Bulk |
| Cable Exit | Internal | Wire Gauge | 20-26 |
| Orientation | Keyed | Termination | Solder |
| Contact Type | Pin | Body Material | metal |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Nickel | Mounting Style | for panel mounting, rear side nut |
| Package / Case | Metal | Plating - Body | nickel |
| Connector Usage | Threaded | Locking Feature | threaded joint, external thread |
| Panel Thickness | max 3.5mm | Contact Material | CuZn+Ag |
| Housing Material | Die Cast | Package Quantity | 5 |
| Primary Material | DIN | Connector - Cable | socket |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 7 | Dielectric Material | Thermoplastic |
| Number of Positions | 7 | Shell Size - Insert | DIN |
| 1st Connector Gender | Male | Shell Material, Finish | Die Cast, Nickel Plated |
| Wire Gauge or Range - mm2 | 0.5mm2 | Contact Material - Plating | silver plated |
| 1st Connector Mounting Feature | DIN EN 60130-9 | ||
Product Info
| Spg | 5 | Type | Panel Socket |
| Design | Panel-mount male receptacle | Series | C 091 D |
| Features | Shielded | Manufacturer | C091-D Series |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | Connection Method | 0.5 |
| RF Family/Standard | C091D | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
