点击放大查看

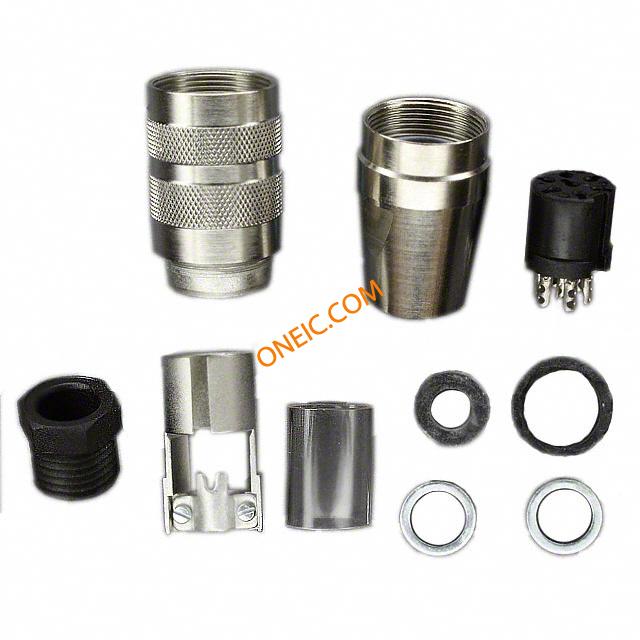

C091 31D007 100 2
| Manufacturer | |
| Description | Circular DIN Connectors Female 7 Pin Cable straight CONN FEMALE 7POS CABLE STRGHT CIRCULAR CONNECTOR RECEPTACLE 7POS CABLE CONN FEMALE 7POS INLINE STRGHT Connector: circular; Series: C091D; female; plug; silver plated Cable box, 7-pin Poles=7, C091 31D007 100 2, Amphenol |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 100 2 31D007 34B7566 C091 U | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Standards | UL E63093 |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 300 V | Voltage - Supply | DIN |
| Current Rating (Max) | 5 A | ||
Mechanical
| Weight | 0.041 | Packaging | Bulk |
| Orientation | Keyed | Termination | Solder Cup |
| Weight (g): | 37.60000 | Body Material | metal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Cable Diameter | 4...6mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | for cable | Plating - Body | nickel |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Brass | Package Quantity | 10 |
| Size / Dimension | see | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 7 | Number of Positions | 7 |
| Shell Size - Insert | DIN | Shell Material, Finish | Die Cast, Nickel Plated |
| Wire Gauge or Range - mm2 | 0.5mm2 | Contact Material - Plating | silver plated |
| 1st Connector Mounting Type | :Cable | 1st Connector Mounting Feature | DIN EN 60130-9 |
Product Info
| Spg | 10 | Gender | :Receptacle |
| Series | :C 091 D | Features | Shielded, Strain Relief |
| Product Type | Connectors | Adapter Series | C091D |
| Number of Units | 1 | RF Family/Standard | C091D |
Environmental
| Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 100°C |
